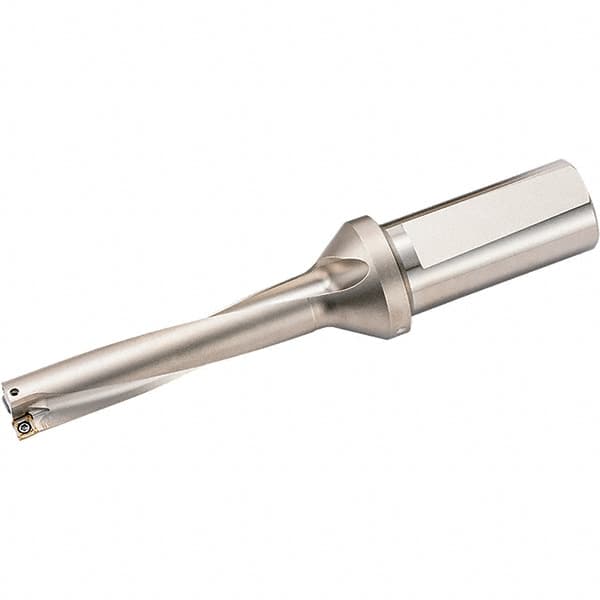

Kyocera - 5.31" Max Drill Depth, 5xD, 1.062" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Weldon Shank
Item #: 47588835
Brand: Kyocera
Model #: 8860215
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Depth (Decimal Inch) | 5.3100 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.062 |
| Insert Compatibility | SCMT 090405-E & SCMT090410-I |
| Flute Length (Decimal Inch) | 5.3100 |
| Series | DRV Magic Drill |
