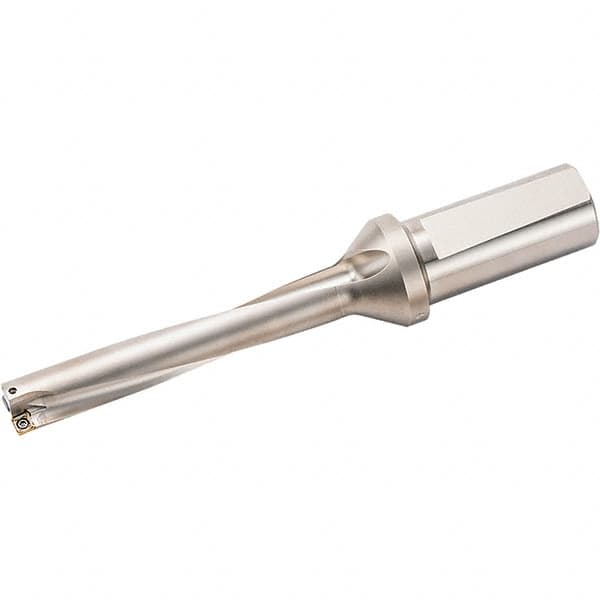

Kyocera - 4.128" Max Drill Depth, 6XD, 0.688" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Weldon Shank
Item #: 47588926
Brand: Kyocera
Model #: 8859057
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (Decimal Inch) | 0.6880 |
| Maximum Drill Depth (Decimal Inch) | 4.1280 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 6XD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.688 |
| Overall Length/Projection (Decimal Inch) | 7.1792 |
| Insert Compatibility | SCMT 050205-E & SCMT050210-I |
| Flute Length (Decimal Inch) | 4.1280 |
| Body Length (Decimal Inch) | 5.0532 |
| Shank Length (Decimal Inch) | 2.1300 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Series | DRV Magic Drill |
