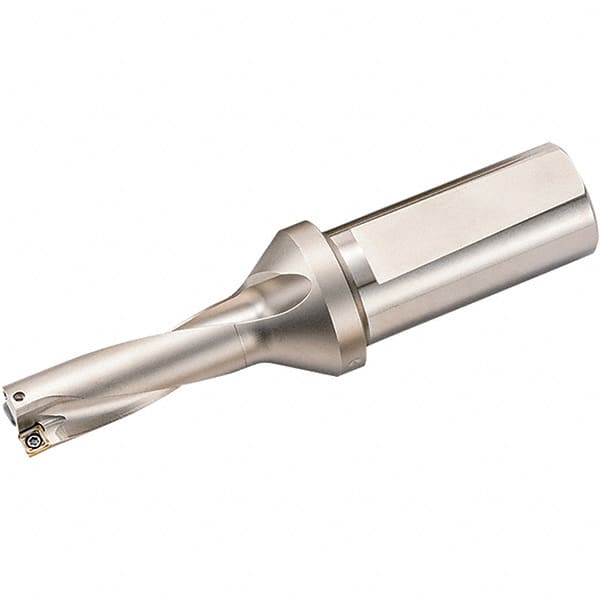

Kyocera - 1-7/8" Max Drill Depth, 3xD, 5/8" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Weldon Shank
Item #: 47589023
Brand: Kyocera
Model #: 8859004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (Inch) | 5/8 |
| Maximum Drill Depth (Inch) | 1-7/8 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 4.4930 |
| Insert Compatibility | SCMT 050205-E & SCMT050210-I |
| Flute Length (Decimal Inch) | 1.8750 |
| Body Length (Decimal Inch) | 2.8002 |
| Shank Length (Decimal Inch) | 1.6900 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Series | DRV Magic Drill |
