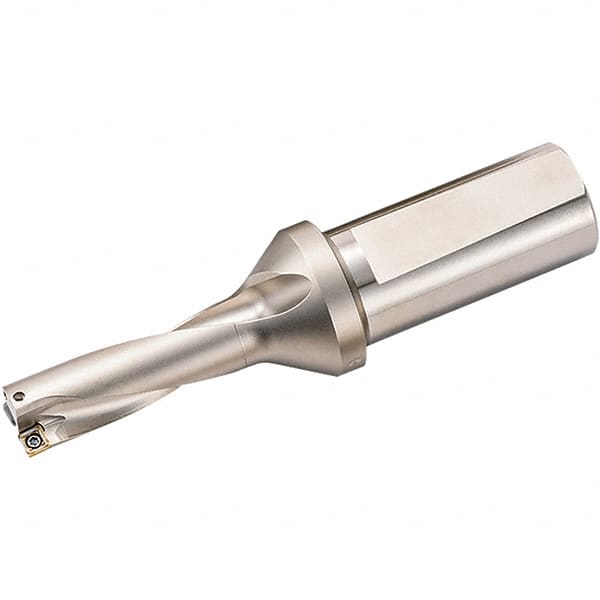

Kyocera - 1.686" Max Drill Depth, 3xD, 0.562" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Weldon Shank
Item #: 47589064
Brand: Kyocera
Model #: 8860208
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (Decimal Inch) | 0.5620 |
| Maximum Drill Depth (Decimal Inch) | 1.6860 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.562 |
| Overall Length/Projection (Decimal Inch) | 4.2230 |
| Insert Compatibility | SCMT 040205-E & SCMT040209-I |
| Flute Length (Decimal Inch) | 1.6860 |
| Body Length (Decimal Inch) | 2.5300 |
| Shank Length (Decimal Inch) | 1.6900 |
| Collar Diameter (Decimal Inch) | 1.0630 |
| Series | DRV Magic Drill |
