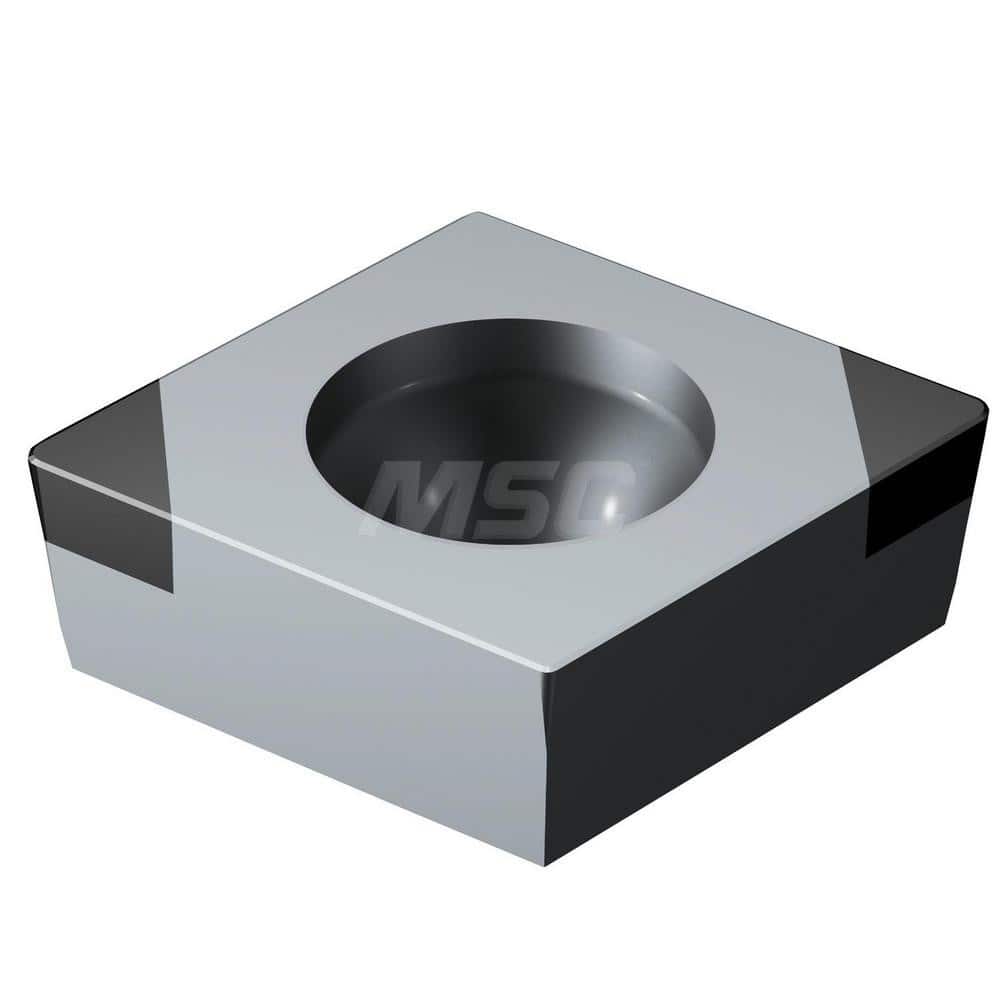

CCGW32.51S0320F 7125 CBN Turning Insert AlTiCrN Finish, Neutral, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1563″ Thick
Item #: 47593462
Brand: Sandvik Coromant
Model #: 7586823
Product Specifications
| Insert Style | CCGW |
| Insert Shape Code | C |
| Insert Size Code | 09T3 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | 7125 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CoroTurn 107 |
| Coating Process | PVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | CCGW3(2.5)1S0320F7125 |
| Iso Code | CCGW09T304S01020F 7125 |
| Cutting Direction | Neutral |
| Chip Breaker | W |
| Coating/Finish | AlTiCrN |
