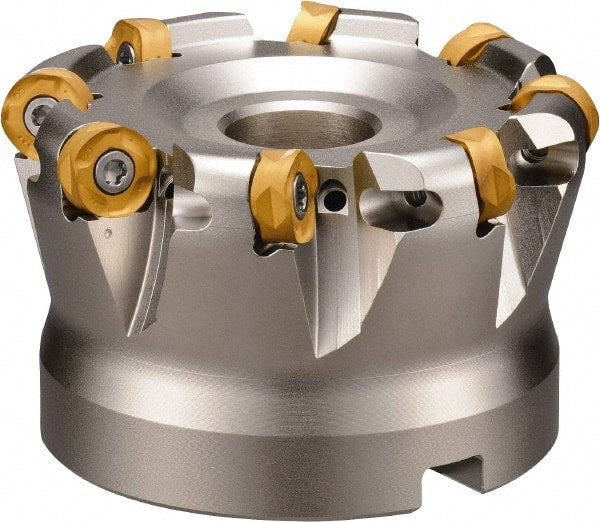

Tungaloy - 38mm Cut Diam, 6mm Max Depth, 22mm Arbor Hole, 5 Inserts, RC.. 1204 Insert Style, Indexable Copy Face Mill - TRC Cutter Style, 50mm High, Through Coolant, Series RoundSplit
Item #: 47655956
Brand: Tungaloy
Model #: 8838473
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 15.90 |
| Arbor Hole Diameter (Decimal Inch) | 0.6260 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | RAD-8 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | ROMU 16... |
| Cutter Style | MRW |
| Through Coolant | Yes |
| Maximum RPM | 8560 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.5039 |
| Hub Diameter (mm) | 89.00 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 2.1654 |
| Counterbore Diameter (mm) | 55.00 |
| Complete Insert Compatibility | ROMU 1605M0ER-GH; ROMU 1605M0ER-GM; ROMU 1605M0ER-SM |
| ISO Number | MRW125R-16-8T |
