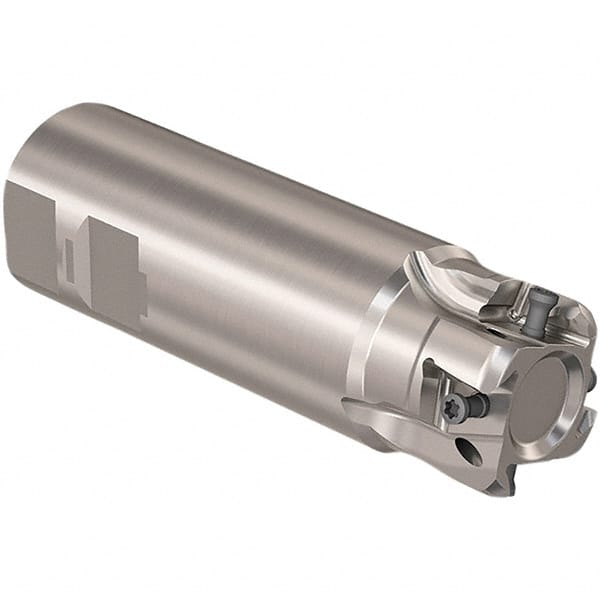

Seco - 1-1/2" Cut Diam, 12mm Max Depth of Cut, 1-1/2" Shank Diam, 120mm OAL, Indexable Square Shoulder Slot Milling End Mill - LOEX12 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series 217.94-12
Item #: 47685151
Brand: Seco
Model #: 29118
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon Shank |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length/Projection (mm) | 120.00 |
| Lead Angle | 90 |
| Series | 217.94-12 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 12.00 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Slot Milling |
| Cutter Style | 217.94-12 |
| Number of Flutes | 4 |
| Head Length (mm) | 30.00 |
| Weldon Flat | Yes |
| Insert Compatibility | LOEX12 |
| Shank Length (mm) | 90.00 |
| Maximum RPM | 11300 |
| Toolholder Material | Steel |
