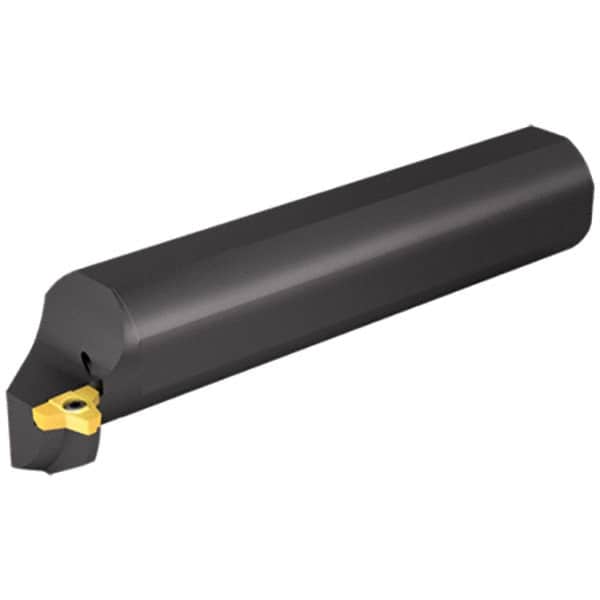

Vargus - Internal Thread, Right Hand Cut, 2" Shank Width x 1.81" Shank Height Indexable Threading Toolholder - 10.06" OAL, 5MGIR Insert Compatibility, NVRC Toolholder, Series Megaline
Item #: 47726617
Brand: Vargus
Model #: 66401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 2.0000 |
| Shank Height (Decimal Inch) | 1.8100 |
| Overall Length (Decimal Inch) | 10.0600 |
| Insert Compatibility | 5MGIR |
| Series | Megaline |
| Toolholder Style | NVRC |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 71.7500 |
| Neck Diameter (Decimal Inch) | 1.9900 |
| Minimum Bore Diameter (Decimal Inch) | 2.9500 |
