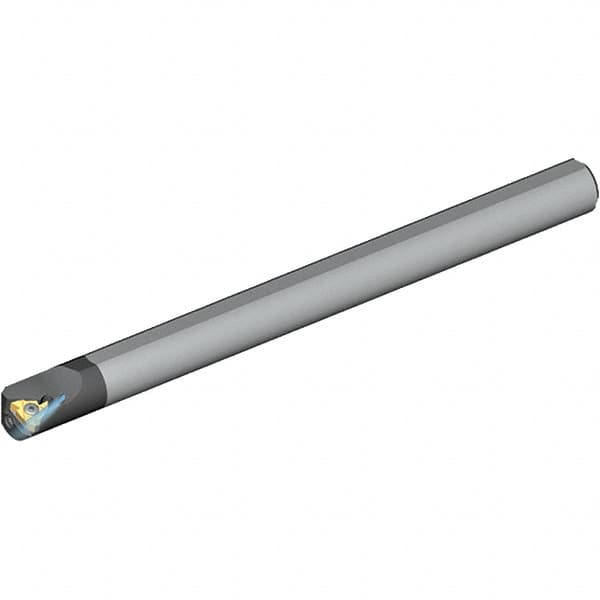

Vargus - Internal Thread, Right Hand Cut, 40mm Shank Width x 36mm Shank Height Indexable Threading Toolholder - 300mm OAL, 3IR Insert Compatibility, CAVRC Toolholder, Series Microscope
Item #: 47728225
Brand: Vargus
Model #: 66222
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Height (mm) | 36.00 |
| Overall Length (mm) | 300.00 |
| Insert Compatibility | 3IR |
| Series | Microscope |
| Toolholder Style | CAVRC |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 23.4000 |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Minimum Bore Diameter (mm) | 24 |
