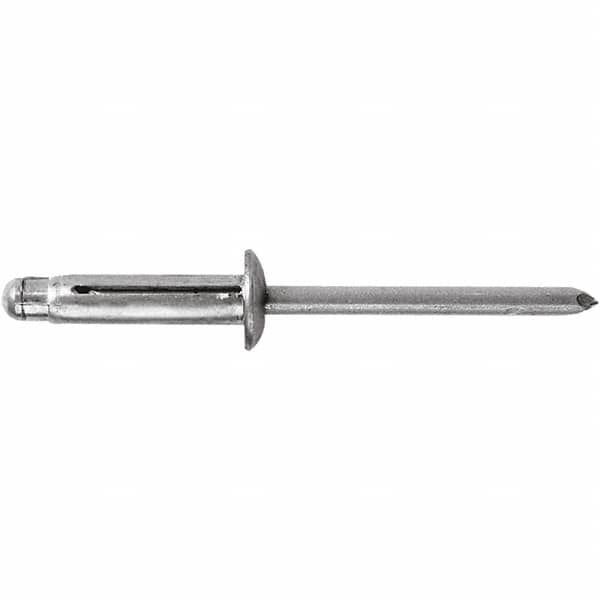

STANLEY Engineered Fastening - Size 6 Large Flange Head Aluminum Open End Blind Rivet - Aluminum Mandrel, 0.04" to 0.354" Grip, 3/16" Head Diam, 0.197" to 0.207" Hole Diam, 0.197" Body Diam
Item #: 47810445
Brand: STANLEY Engineered Fastening
Model #: POP0BF41-00625
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Large-flange head types have the largest bearing surface of blind rivets. They are used in oversized holes and to fasten soft or brittle materials to prevent pull-through.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Open End |
| Head Type | Large Flange |
| Size Code | 6 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.0400 |
| Maximum Grip (Decimal Inch) | 0.3540 |
| Head Diameter (Inch) | 3/16 |
| Minimum Hole Diameter (Decimal Inch) | 0.1970 |
| Maximum Hole Diameter (Decimal Inch) | 0.2070 |
| Rivet Material Grade | 5754 |
| Mandrel Material Grade | 5056 |
| Body Diameter (Decimal Inch) | 0.1970 |
| Shear Strength (Lb.) | 175 |
| Tensile Strength (Lb.) | 240 |
| Rivet Finish/Coating | Uncoated |
