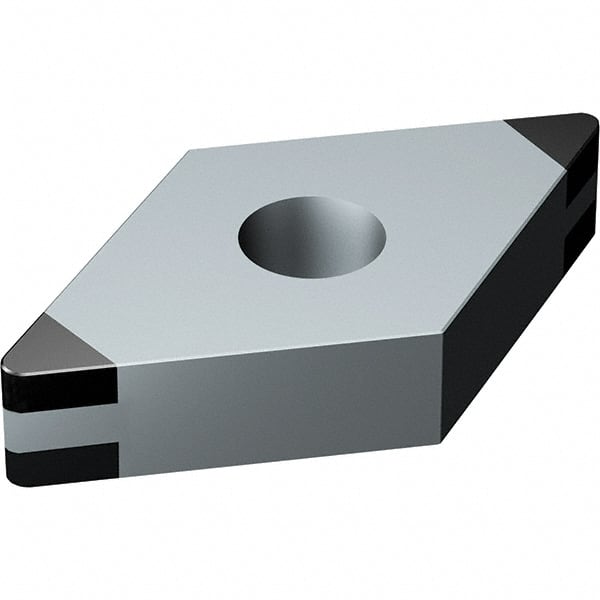

DNGA434S0525H 7125 CBN Turning Insert AlTiCrN Finish, Neutral, 1/2″ Inscribed Circle, 0.063″ Corner Radius, 3/16″ Thick
Item #: 47811013
Brand: Sandvik Coromant
Model #: 7586861
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 1504 |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | 7125 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chip Breaker | A |
| Coating/Finish | AlTiCrN |
