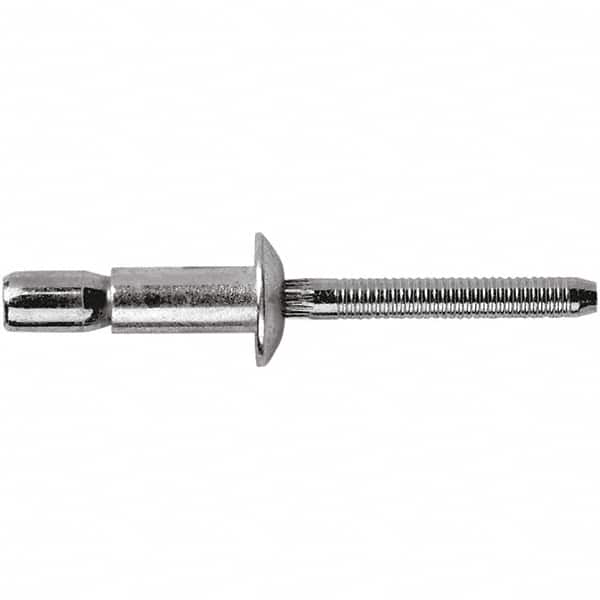

STANLEY Engineered Fastening - Size 8 Dome Head Stainless Steel Structural with Locking Stem Blind Rivet - Stainless Steel Mandrel, 0.08" to 3/8" Grip, 1/4" Head Diam, 0.261" to 0.276" Hole Diam, 0.153" Body Diam
Item #: 47845557
Brand: STANLEY Engineered Fastening
Model #: POPCCPI-08-06
Exact Tooling IR#: 04
Features and Benefits
Structural rivets with a locking stem have a locking collar on the stem that creates a watertight, vibration-resistant bond.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Structural w/ Locking Stem |
| Head Type | Dome |
| Size Code | 8 |
| Rivet Material | Stainless Steel |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.0800 |
| Maximum Grip (Inch) | 3/8 |
| Head Diameter (Inch) | 1/4 |
| Minimum Hole Diameter (Decimal Inch) | 0.2610 |
| Maximum Hole Diameter (Decimal Inch) | 0.2760 |
| Rivet Material Grade | 302 |
| Mandrel Material Grade | 316 |
| Body Diameter (Decimal Inch) | 0.1530 |
| Shear Strength (Lb.) | 2400 |
| Tensile Strength (Lb.) | 1850 |
| Rivet Finish/Coating | Plain/Uncoated (Rivet) |
