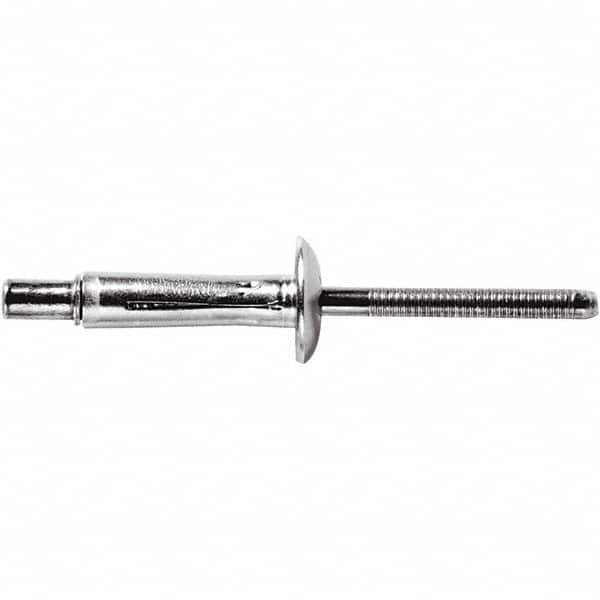

STANLEY Engineered Fastening - Size 6 Dome Head Aluminum Structural with Locking Stem Blind Rivet - Aluminum Mandrel, 0.187" to 3/8" Grip, 3/16" Head Diam, 0.204" to 0.209" Hole Diam, 0.103" Body Diam
Item #: 47845789
Brand: STANLEY Engineered Fastening
Model #: POPBAPKTR-06-06
Exact Tooling IR#: 04
Features and Benefits
Structural rivets with a locking stem have a locking collar on the stem that creates a watertight, vibration-resistant bond.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Structural w/ Locking Stem |
| Head Type | Dome |
| Size Code | 6 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.1870 |
| Maximum Grip (Inch) | 3/8 |
| Head Diameter (Inch) | 3/16 |
| Minimum Hole Diameter (Decimal Inch) | 0.2040 |
| Maximum Hole Diameter (Decimal Inch) | 0.2090 |
| Rivet Material Grade | 5056 |
| Mandrel Material Grade | 7075 |
| Body Diameter (Decimal Inch) | 0.1030 |
| Shear Strength (Lb.) | 700 |
| Tensile Strength (Lb.) | 450 |
| Rivet Finish/Coating | Uncoated |
