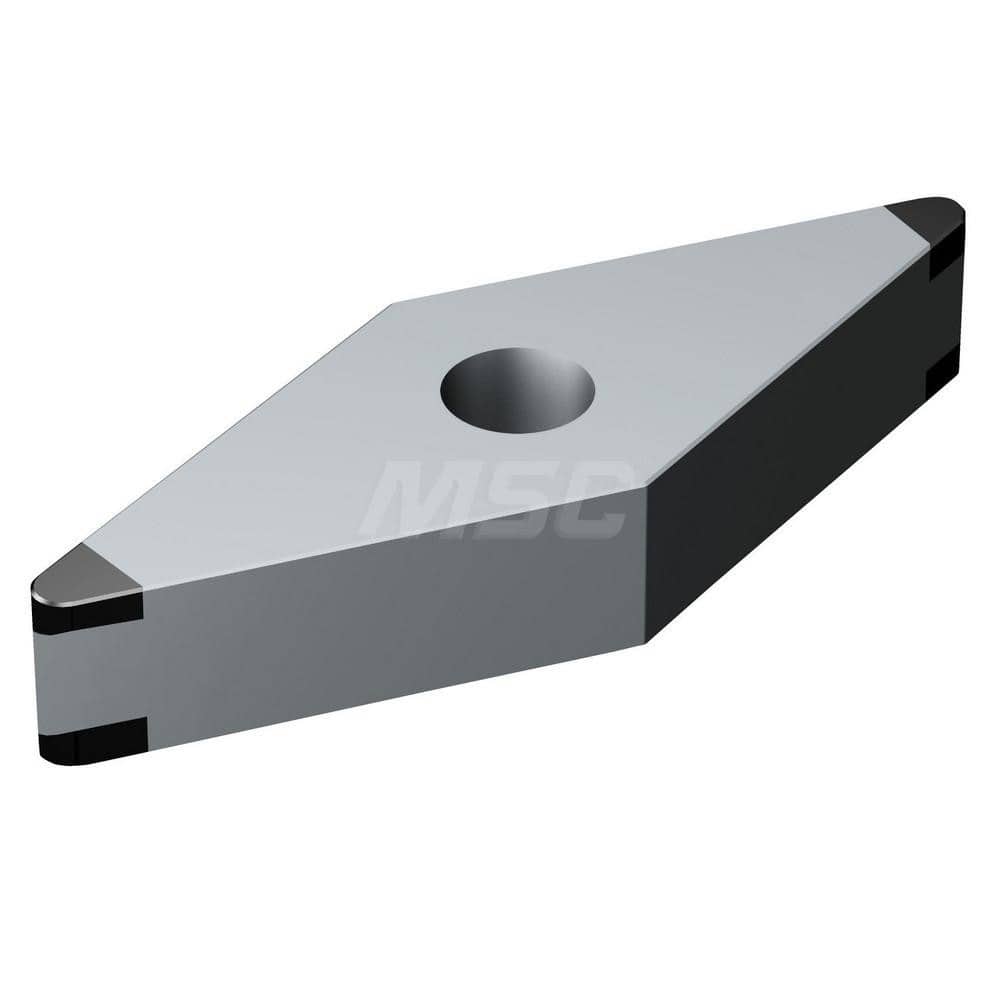

VNGA331S0525H 7125 CBN Turning Insert AlTiCrN Finish, Neutral, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 3/16″ Thick
Item #: 47848692
Brand: Sandvik Coromant
Model #: 7586880
Product Specifications
| Insert Style | VNGA |
| Insert Shape Code | V |
| Insert Size Code | 1604 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | 7125 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | PVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | VNGA331S0525H7125 |
| Iso Code | VNGA160404S01525H 7125 |
| Cutting Direction | Neutral |
| Chip Breaker | A |
| Coating/Finish | AlTiCrN |
