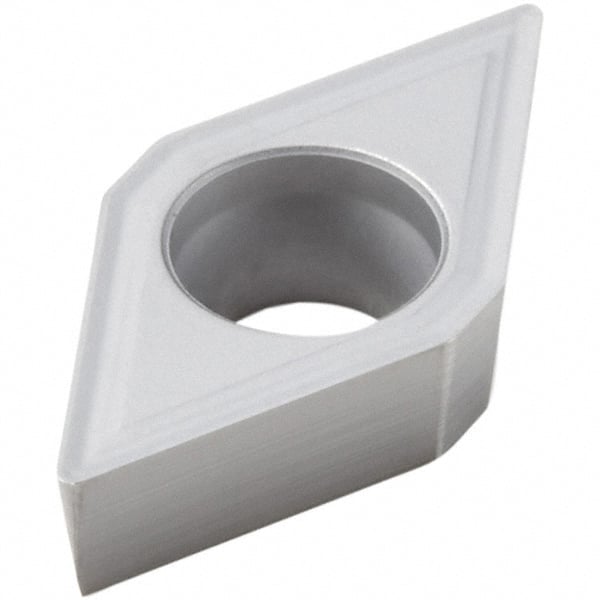

Seco - DCGT32.51 M3 Grade HX Carbide Turning Insert - Uncoated, 55° Diamond, 3/8" Inscr Circle, 0.016" Corner Radius
Item #: 47902143
Brand: Seco
Model #: 49332
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 32.51 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | HX |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Chip Breaker | M3 |
| Hole Diameter (Decimal Inch) | 0.1800 |
| Relief Angle | 7 |
| Primary Workpiece Material | N |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
