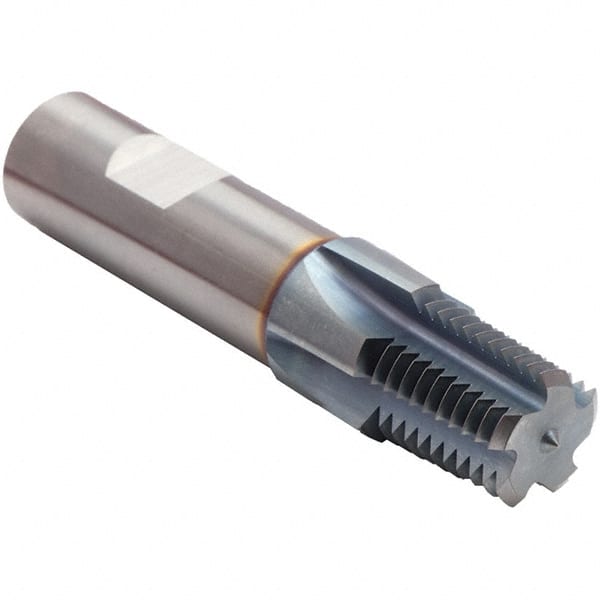

Emuge - 2 - 11-1/2 Thread, 5/8" Shank Diam, TiCN Coating, Solid Carbide Straight Flute Thread Mill - 5 Flutes, 4" OAL
Item #: 47955703
Brand: Emuge
Model #: GFT53A36.9679
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 11-1/2 |
| Thread Size (Inch) | 2 - 11-1/2 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Inch) | 5/8 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.6060 |
| Finish/Coating | TiCN |
| Length of Cut (Decimal Inch) | 1.0900 |
| Thread Standard | NPT |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 4 |
