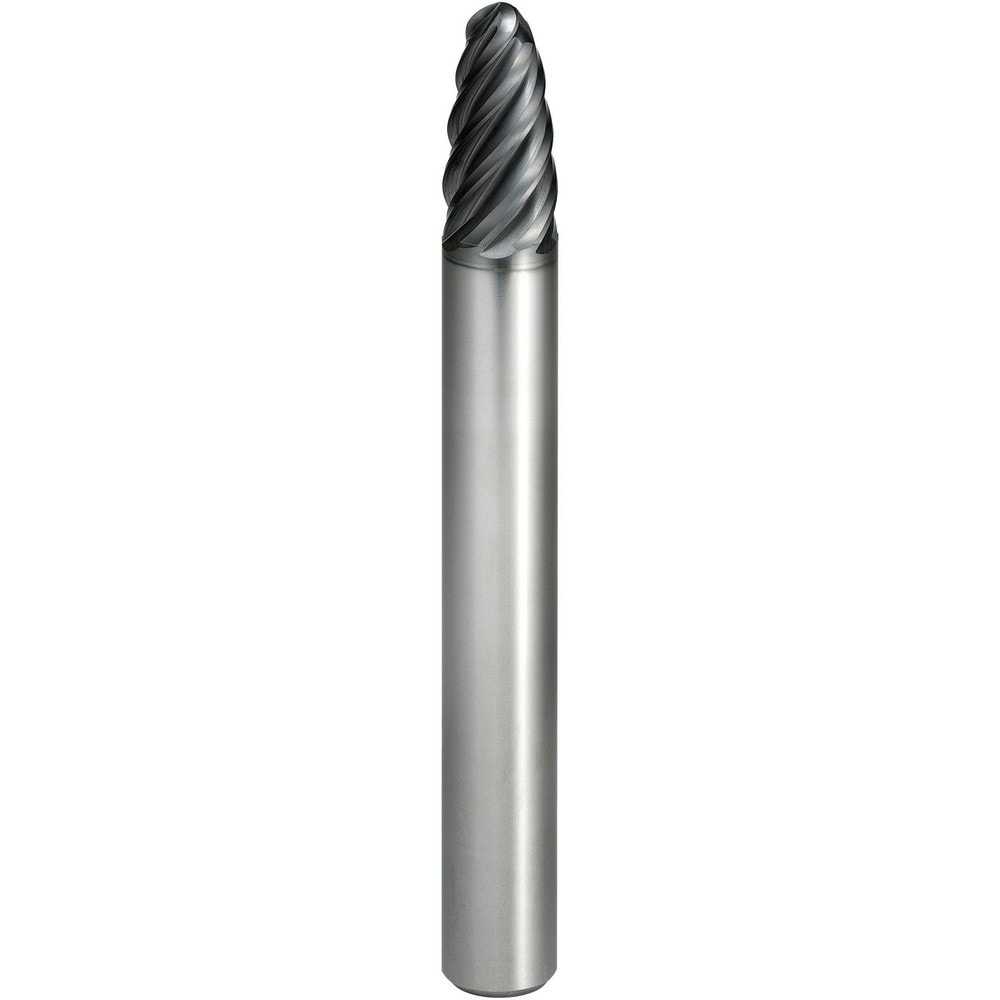

Barrel Cutter End Mills; End Type: Circle Segment Oval Form; Material: Carbide; Taper Angle Per Side: 85.00; Small End Diameter (mm): 10.00; Shank Diameter (mm): 10.0000; Length of Cut (mm): 26.0000; Helix Angle: 40.00
Item #: 85659613
Brand: Mitsubishi
Model #: 10596685
Product Specifications
| End Type | Circle Segment Oval Form |
| Material | Carbide |
| Taper Angle Per Side | 85.00 |
| Small End Diameter (mm) | 10.00 |
| Shank Diameter (mm) | 10.0000 |
| Length of Cut (mm) | 26.0000 |
| Helix Angle | 40.00 |
| Overall Length (mm) | 100.0000 |
| Flute Type | Helical |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Finish Coating | AlCrN |
| Major Radius (Decimal Inch) | 0.0787 |
| Length of Cut (Decimal Inch) | 1.0236 |
| Shank Diameter | 0.3937 |
| Number Of Flutes | 6 |
| Overall Length (Decimal Inch) | 3.9370 |
| Small End Diameter (Decimal Inch) | 0.3937 |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
