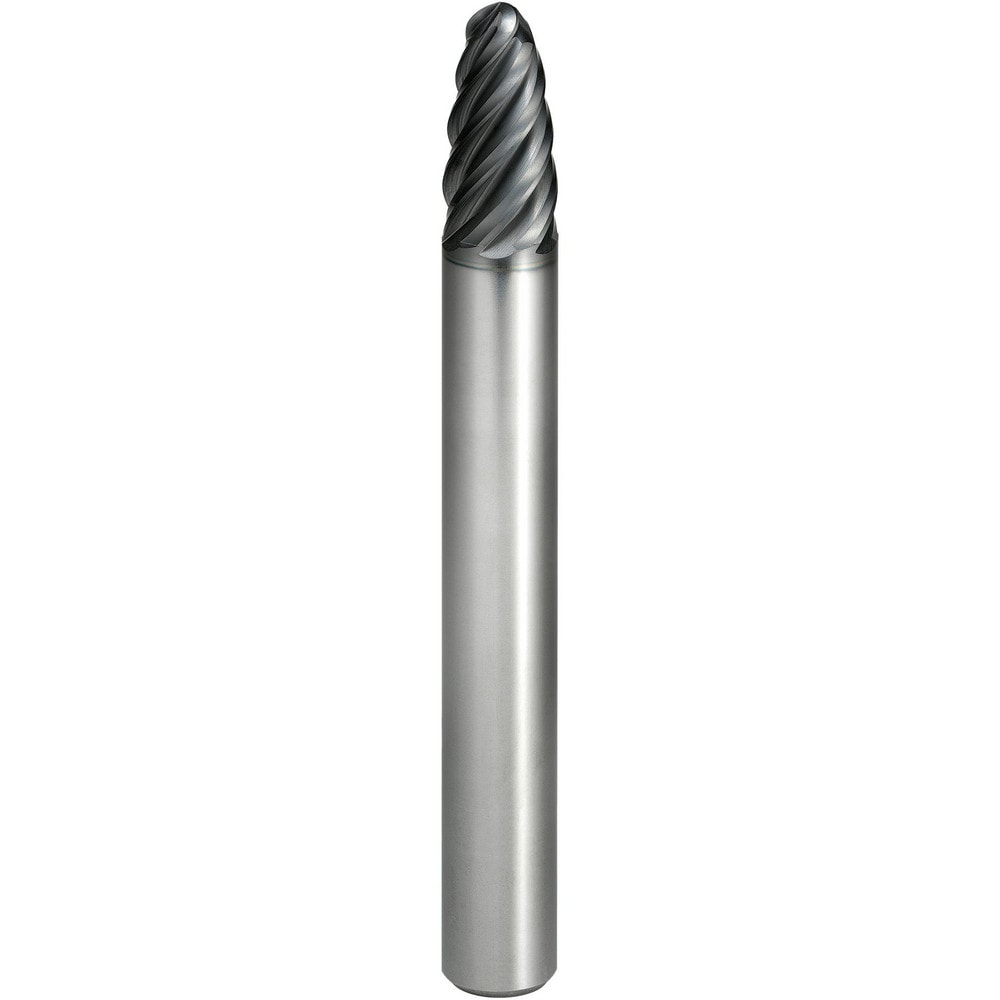

Barrel Cutter End Mills; End Type: Circle Segment Oval Form; Material: Carbide; Taper Angle Per Side: 100.00; Small End Diameter (mm): 12.00; Shank Diameter (mm): 12.0000; Length of Cut (mm): 25.0000; Helix Angle: 40.00
Item #: 85659555
Brand: Mitsubishi
Model #: 10596708
Product Specifications
| End Type | Circle Segment Oval Form |
| Material | Carbide |
| Taper Angle Per Side | 100.00 |
| Small End Diameter (mm) | 12.00 |
| Shank Diameter (mm) | 12.0000 |
| Length of Cut (mm) | 25.0000 |
| Helix Angle | 40.00 |
| Overall Length (mm) | 110.0000 |
| Flute Type | Helical |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Finish Coating | AlCrN |
| Major Radius (Decimal Inch) | 0.1575 |
| Length of Cut (Decimal Inch) | 0.9843 |
| Shank Diameter | 0.4724 |
| Number Of Flutes | 6 |
| Overall Length (Decimal Inch) | 4.3307 |
| Small End Diameter (Decimal Inch) | 0.4724 |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
