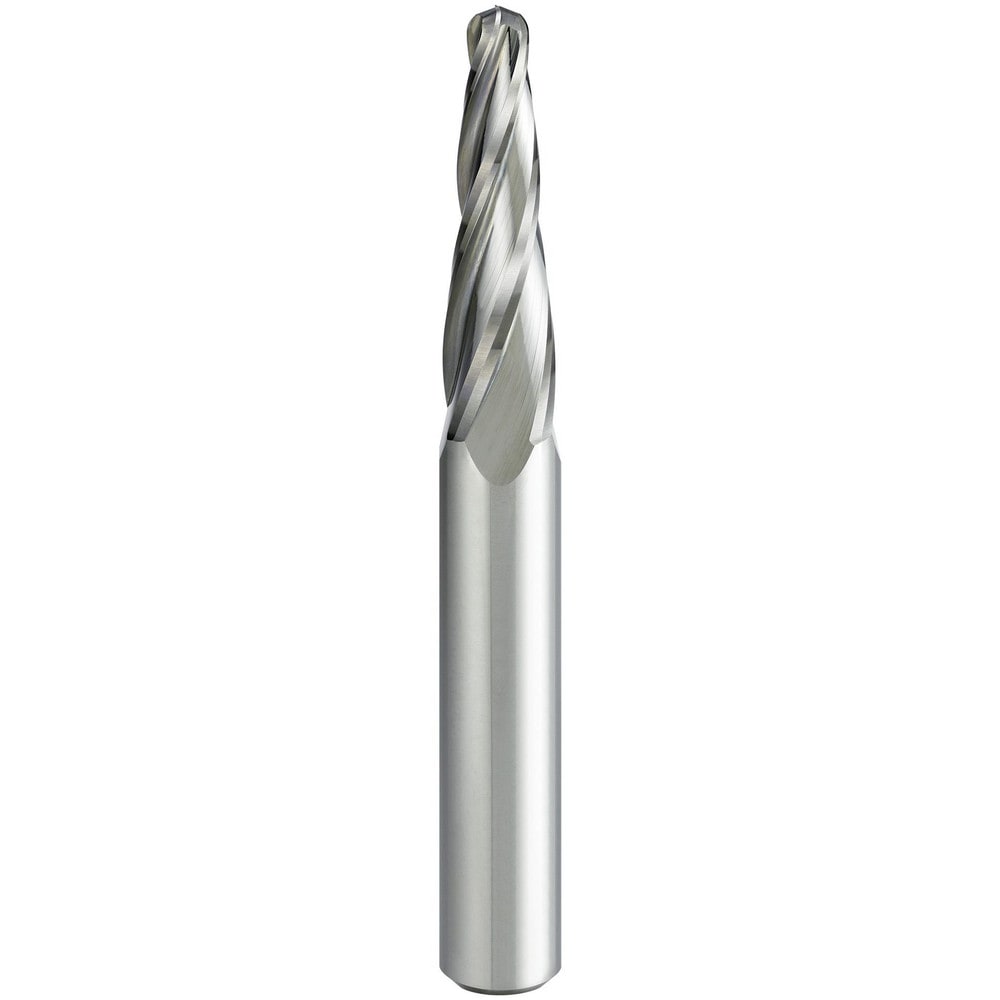

Tapered End Mill: 4 deg Angle per Side, 4.00 mm Small Dia, 30.00 mm LOC, 4 Flute, Ball End
Item #: 85659753
Brand: Mitsubishi
Model #: 10563472
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Length of Cut (mm) | 30.00 |
| Taper Angle Per Side | 4.00 |
| End Mill Material | Solid Carbide |
| End Shape | Ball |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 2.9528 |
| Overall Length (mm) | 75.00 |
| Centercutting | No |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.315 |
| Nose Radius (mm) | 2.00 |
| Nose Radius (Decimal Inch) | 0.0787 |
| Small End Diameter (Decimal Inch) | 0.1575 |
| Small End Diameter (mm) | 4.00 |
| Large End Diameter (mm) | 4.00 |
| Large End Diameter (Decimal Inch) | 0.1575 |
| Helix Angle | 20 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Coating Classification | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1811 |
| Coolant Through | No |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 4 |
| Included Angle Degree | 8 |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
