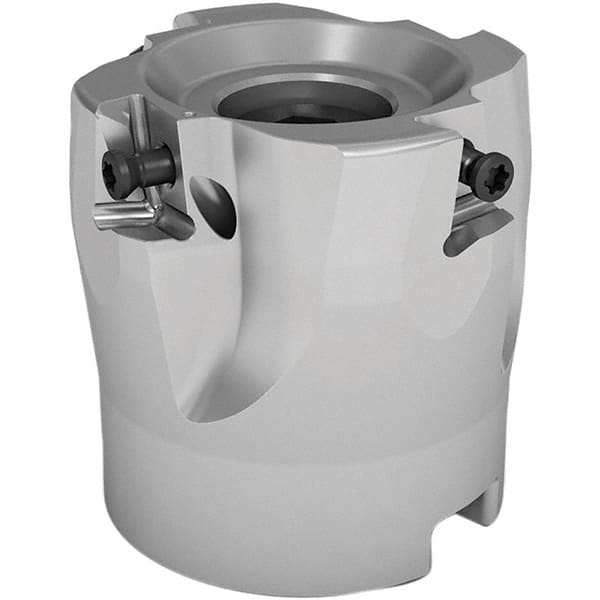

Seco - 9 Inserts, 63mm Cut Diam, 27mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, LOEX08.. Insert Compatibility, Through Coolant, Series 220.94-08
Item #: 47969118
Brand: Seco
Model #: 82205
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | LOEX08.. |
| Series | 220.94-08 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | 220.94-08 |
| Number of Flutes | 9 |
| Hub Diameter (mm) | 56.00 |
| Keyway Width (mm) | 12.40 |
| Maximum RPM | 10400 |
| Pitch | 9 |
| Toolholder Material | Steel |
