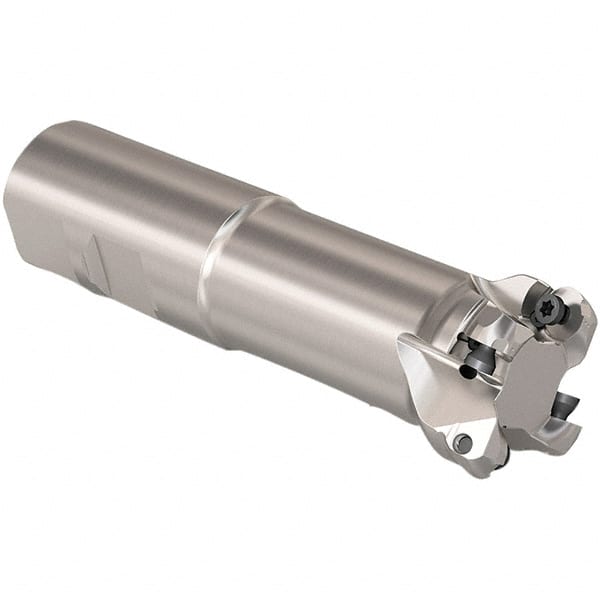

Seco - 28mm Cutting Diam, 32mm Shank Diam, 6mm Max Depth of Cut, Weldon Shank Indexable Copy End Mill - 4 Inserts, RP.. 1204 Insert, 217.29I-06 Toolholder, Steel, Through Coolant
Item #: 48048474
Brand: Seco
Model #: 13665
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Number of Cutter Inserts | 4 |
| Insert Style | RP.. 1204 |
| Toolholder Style | 217.29I-06 |
| Series | 217.29I |
| Overall Length (mm) | 135.00 |
| Insert Diameter (mm) | 12.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Weldon Flat | Yes |
| Number of Flutes | 4 |
| Shank Length (mm) | 60.00 |
| Maximum RPM | 14000 |
