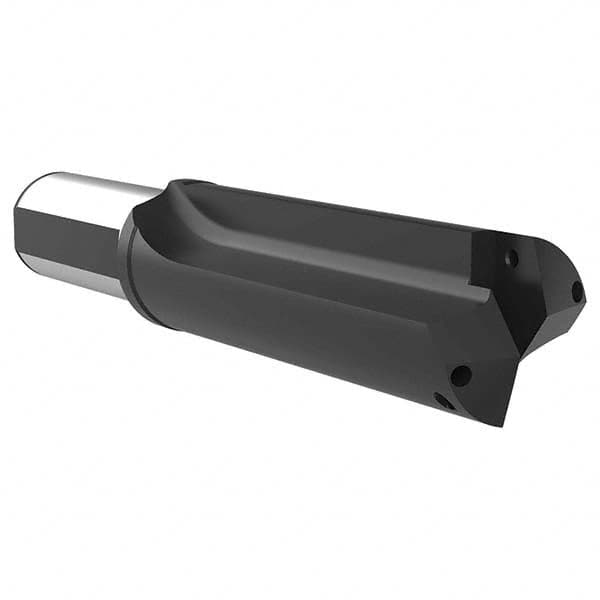

Allied Machine and Engineering - 76.22mm to 89.08mm Diam 172mm Max Depth Straight Flute Spade Drill
Item #: 12329165
Brand: Allied Machine and Engineering
Model #: 22050S-50FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 5 |
| Minimum Drill Diameter (mm) | 76.22 |
| Minimum Drill Diameter (Decimal Inch) | 3.0010 |
| Maximum Drill Diameter (mm) | 89.08 |
| Maximum Drill Diameter (Decimal Inch) | 3.5070 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 50.00 |
| Spade Drill Length | Short Length |
| Overall Length (mm) | 302.30 |
| Maximum Drill Depth (mm) | 172.00 |
| Flute Type | Straight Flute |
| Body Length (mm) | 215.90 |
| Shank Length (mm) | 80.00 |
| Series Code/Seat Size | 5 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/2 |
