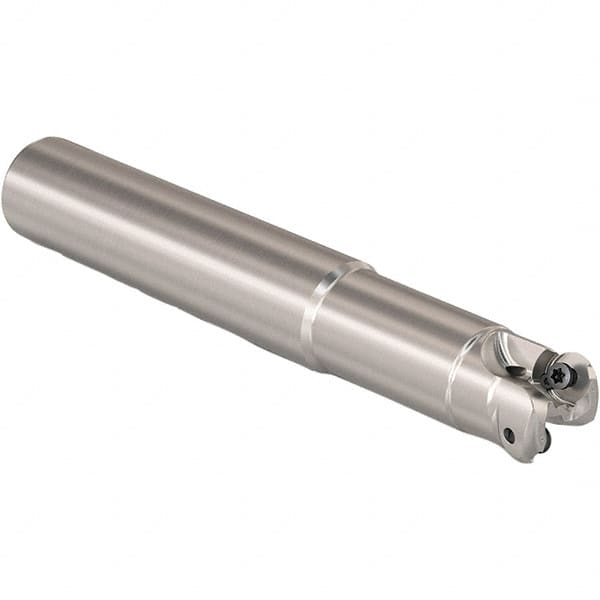

Seco - 13.4mm Cutting Diam, 1" Shank Diam, 6mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RP.. 1204 Insert, 217.29I-06 Toolholder, Steel, Through Coolant
Item #: 48048524
Brand: Seco
Model #: 13710
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Number of Cutter Inserts | 2 |
| Insert Style | RP.. 1204 |
| Toolholder Style | 217.29I-06 |
| Series | 217.29I |
| Overall Length (mm) | 165.10 |
| Insert Diameter (mm) | 12.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Shank Length (mm) | 101.80 |
| Maximum RPM | 17700 |
