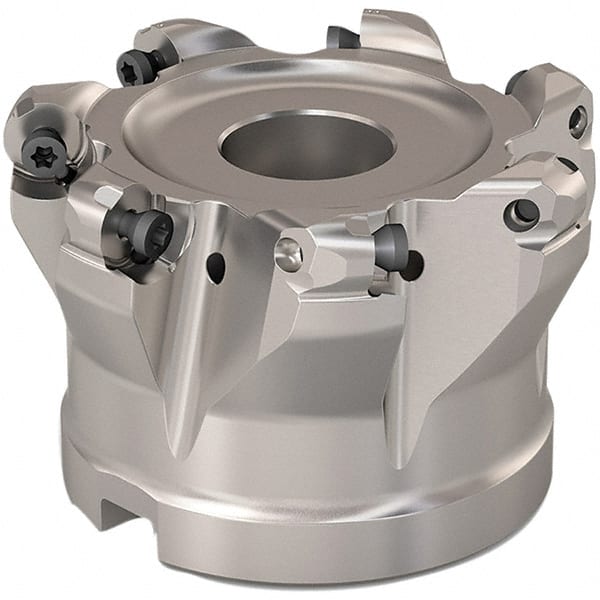

Seco - 64.2mm Cut Diam, 6mm Max Depth, 1" Arbor Hole, 7 Inserts, RP..1204 Insert Style, Indexable Copy Face Mill - R220.29 Cutter Style, 10,000 Max RPM, 2 High, Through Coolant, Series R220.29
Item #: 48050348
Brand: Seco
Model #: 13723
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 64.20 |
| Cutting Diameter (Decimal Inch) | 2.5276 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (Inch) | 1 |
| Overall Height (Inch) | 2 |
| Series | R220.29 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RP..1204 |
| Cutter Style | R220.29 |
| Through Coolant | Yes |
| Maximum RPM | 10000 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 62.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 9.7000 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 3.0000 |
| Overall Diameter (mm) | 76.2000 |
