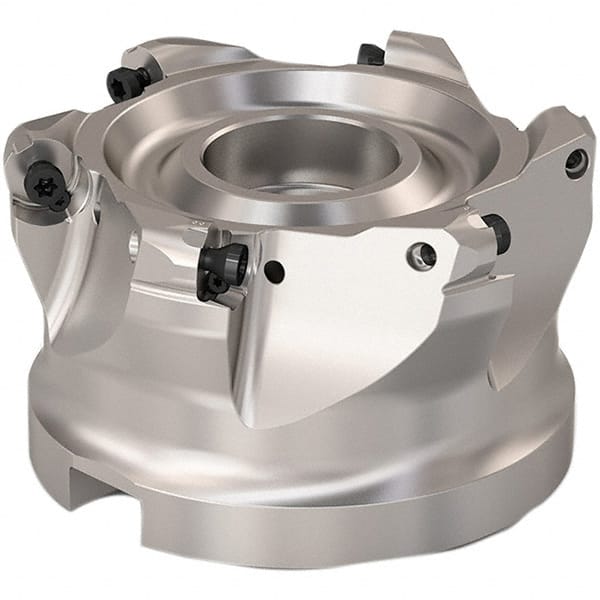

Seco - 72mm Cut Diam, 6mm Max Depth, 32mm Arbor Hole, 6 Inserts, RP..1204 Insert Style, Indexable Copy Face Mill - R220.29 Cutter Style, 9,500 Max RPM, 50mm High, Through Coolant, Series R220.29
Item #: 48050371
Brand: Seco
Model #: 44933
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 72.00 |
| Cutting Diameter (Decimal Inch) | 2.8346 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Overall Height (mm) | 50.00 |
| Series | R220.29 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RP..1204 |
| Cutter Style | R220.29 |
| Through Coolant | Yes |
| Maximum RPM | 9500 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 77.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 14.4000 |
| Cutting Direction | Right Hand |
| Overall Diameter (mm) | 84.0000 |
