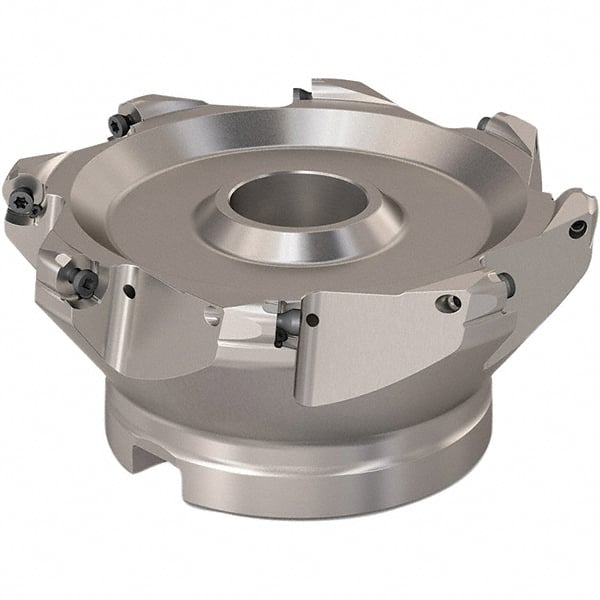

Seco - 125mm Cut Diam, 6mm Max Depth, 40mm Arbor Hole, 8 Inserts, RP..1204 Insert Style, Indexable Copy Face Mill - R220.29 Cutter Style, 7,600 Max RPM, 63mm High, Through Coolant, Series R220.29
Item #: 48050447
Brand: Seco
Model #: 13701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Overall Height (mm) | 63.00 |
| Series | R220.29 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RP..1204 |
| Cutter Style | R220.29 |
| Through Coolant | Yes |
| Maximum RPM | 7600 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 90.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 16.4000 |
| Cutting Direction | Right Hand |
| Overall Diameter (mm) | 137.0000 |
