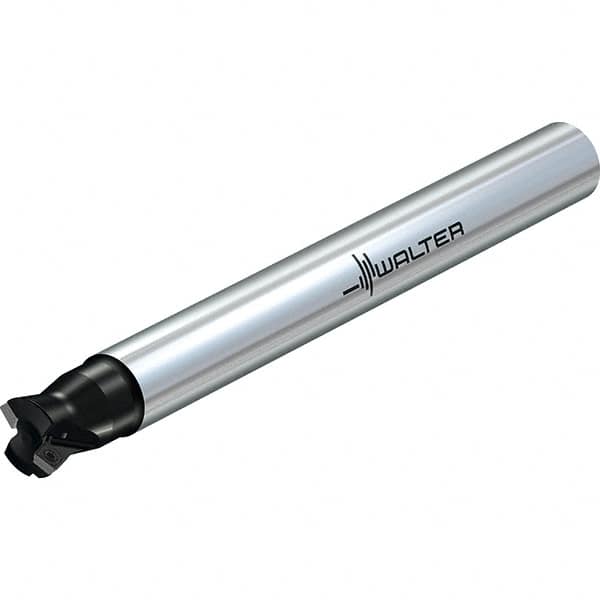

Indexable High-Feed End Mill: 3/4″ Cut Dia, 3/4″ Cylindrical Shank Uses 2 SDMT & SCMW Inserts, 0.039″ Max Depth, 7.874″ OAL, Through Coolant
Item #: 48059117
Brand: Walter
Model #: 6795881
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Toolholder Style | M4002 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Compatible Insert Style | SCMW; SDMT |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 7.8740 |
| Maximum RPM | 5000 |
| Functional Length (Decimal Inch) | 1.1810 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal |
| Secondary Workpiece Material Code | H; N |
| Standards | ISO; ANSI |
| End Mill Type | High Feed |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
