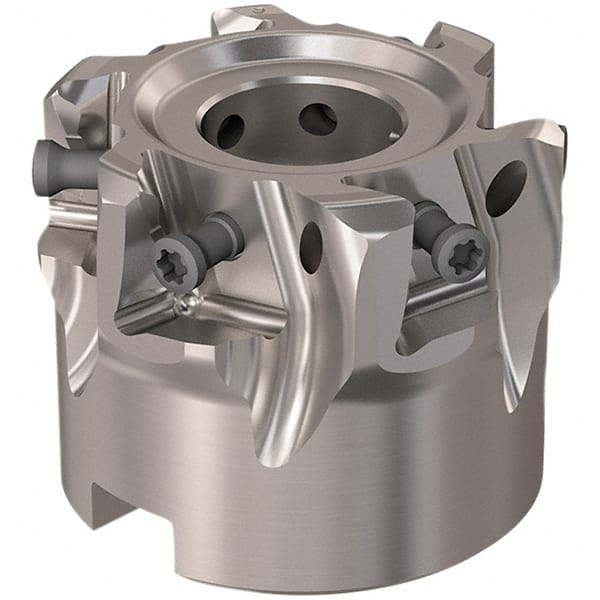

Seco - 6 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, LOEX12 Insert Compatibility, Through Coolant, Series 220.94-12
Item #: 48081285
Brand: Seco
Model #: 28998
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | LOEX12 |
| Series | 220.94-12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | 220.94-12 |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 45.00 |
| Keyway Width (mm) | 10.40 |
| Maximum RPM | 9900 |
| Pitch | 6 |
| Toolholder Material | Steel |
