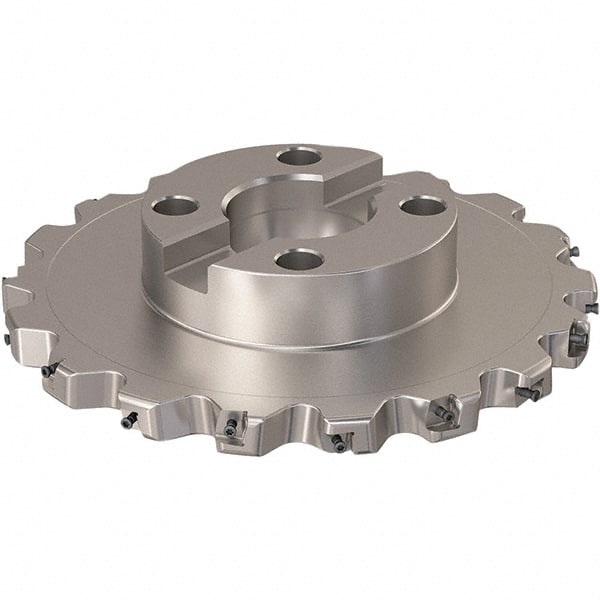

Seco - Shell Mount Connection, 0.787" Cutting Width, 59.31mm Depth of Cut, 250mm Cutter Diam, 60mm Hole Diam, 9 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ 12 Insert, Right Hand Cutting Direction
Item #: 48095244
Brand: Seco
Model #: 14104
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 20.00 |
| Cutting Width (Decimal Inch) | 0.7870 |
| Maximum Depth of Cut (mm) | 59.31 |
| Cutter Diameter (mm) | 250.00 |
| Hole Diameter (mm) | 60.00 |
| Number of Teeth | 9 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ 12 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 4600 |
| Number of Flutes | 18 |
| Maximum Cutting Width (mm) | 20.00 |
| Hub Diameter (mm) | 130.00 |
| Keyway Width (mm) | 25.70 |
| Through Coolant | No |
