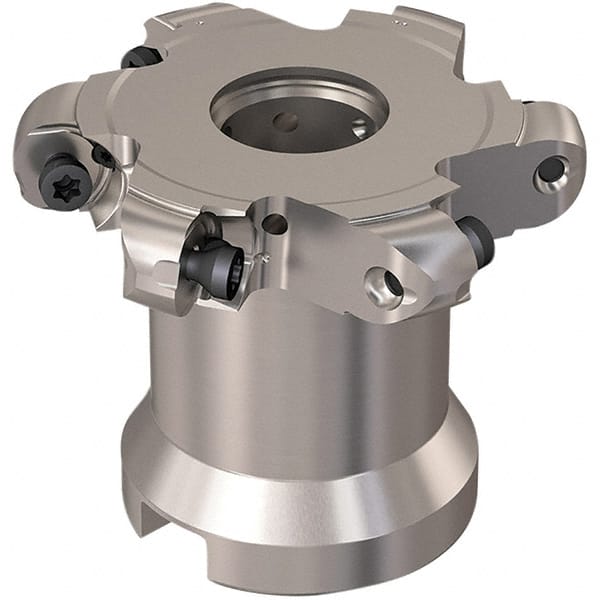

Seco - Shell Mount Connection, 0.472" Cutting Width, 15mm Depth of Cut, 63mm Cutter Diam, 22mm Hole Diam, 3 Tooth Indexable Slotting Cutter - R335.29 Toolholder, RP.. 1204 Insert, Right Hand Cutting Direction
Item #: 48095335
Brand: Seco
Model #: 01831
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutter Diameter (mm) | 63.00 |
| Hole Diameter (mm) | 22.00 |
| Number of Teeth | 3 |
| Toolholder Style | R335.29 |
| Series | R335.29 |
| Insert Style | RP.. 1204 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Cartridge |
| Insert Holding Method | Screw |
| Maximum RPM | 10200 |
| Number of Flutes | 6 |
| Maximum Cutting Width (mm) | 12.00 |
| Hub Diameter (mm) | 40.00 |
| Keyway Width (mm) | 10.40 |
| Through Coolant | Yes |
