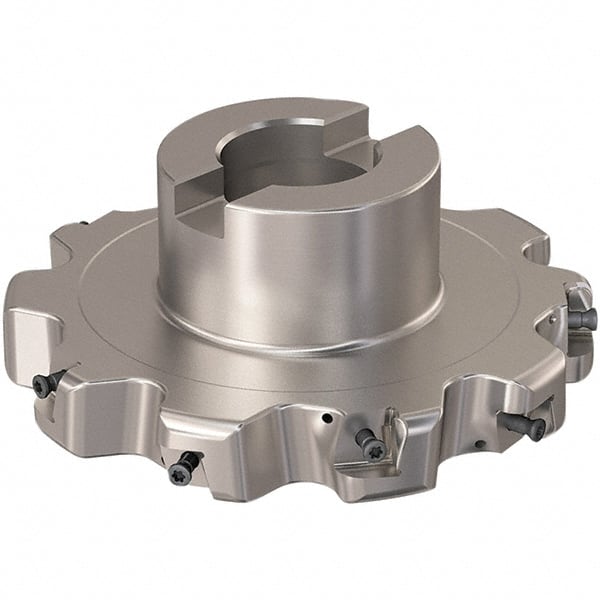

Seco - Shell Mount Connection, 0.787" Cutting Width, 32.81mm Depth of Cut, 125mm Cutter Diam, 32mm Hole Diam, 5 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ 12 Insert, Right Hand Cutting Direction
Item #: 48095392
Brand: Seco
Model #: 14094
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 20.00 |
| Cutting Width (Decimal Inch) | 0.7870 |
| Maximum Depth of Cut (mm) | 32.81 |
| Cutter Diameter (mm) | 125.00 |
| Hole Diameter (mm) | 32.00 |
| Number of Teeth | 5 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ 12 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 6500 |
| Number of Flutes | 10 |
| Maximum Cutting Width (mm) | 20.00 |
| Hub Diameter (mm) | 58.00 |
| Keyway Width (mm) | 14.40 |
| Through Coolant | Yes |
