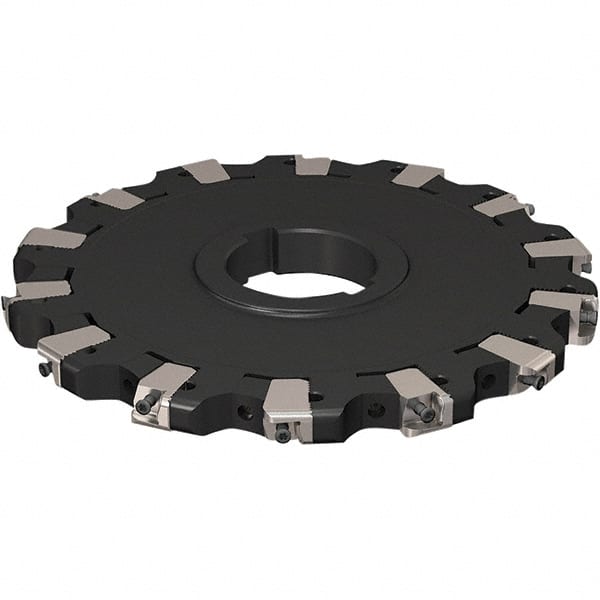

Seco - Arbor Hole Connection, 17/32" Cutting Width, 63.54mm Depth of Cut, 200mm Cutter Diam, 50mm Hole Diam, 7 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ 1407 Insert, Neutral Cutting Direction
Item #: 48095400
Brand: Seco
Model #: 06348
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 13.50 |
| Cutting Width (Decimal Inch) | 0.5310 |
| Maximum Depth of Cut (mm) | 63.54 |
| Cutter Diameter (mm) | 200.00 |
| Hole Diameter (mm) | 50.00 |
| Number of Teeth | 7 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ 1407 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Neutral |
| Insert Holding Method | Cartridge |
| Insert Holding Method | Screw |
| Maximum RPM | 6500 |
| Number of Flutes | 14 |
| Maximum Cutting Width (mm) | 17.00 |
| Hub Diameter (mm) | 69.00 |
| Keyway Width (mm) | 12.00 |
| Through Coolant | No |
