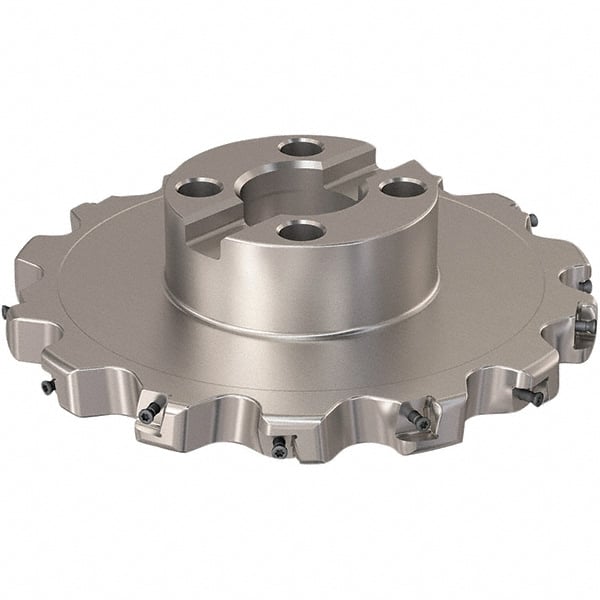

Seco - Shell Mount Connection, 0.787" Cutting Width, 54.31mm Depth of Cut, 200mm Cutter Diam, 40mm Hole Diam, 7 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ 12 Insert, Right Hand Cutting Direction
Item #: 48095418
Brand: Seco
Model #: 14102
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 20.00 |
| Cutting Width (Decimal Inch) | 0.7870 |
| Maximum Depth of Cut (mm) | 54.31 |
| Cutter Diameter (mm) | 200.00 |
| Hole Diameter (mm) | 40.00 |
| Number of Teeth | 7 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ 12 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 5100 |
| Number of Flutes | 14 |
| Maximum Cutting Width (mm) | 20.00 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Through Coolant | No |
