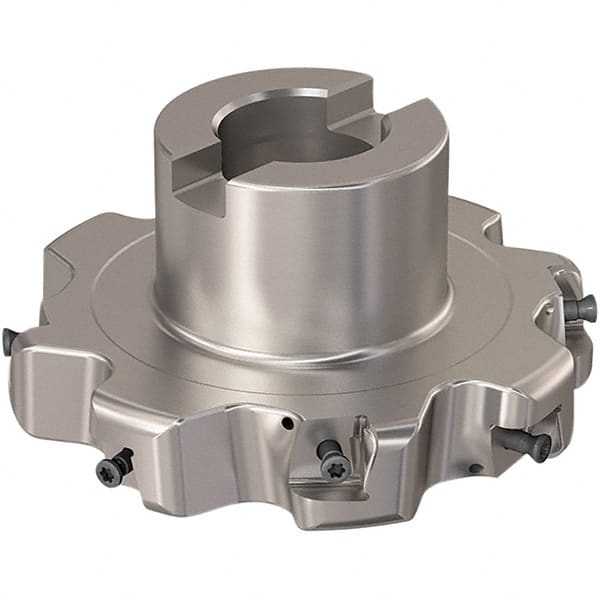

Seco - Shell Mount Connection, 0.787" Cutting Width, 25.31mm Depth of Cut, 100mm Cutter Diam, 27mm Hole Diam, 4 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ 12 Insert, Right Hand Cutting Direction
Item #: 48095566
Brand: Seco
Model #: 14089
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 20.00 |
| Cutting Width (Decimal Inch) | 0.7870 |
| Maximum Depth of Cut (mm) | 25.31 |
| Cutter Diameter (mm) | 100.00 |
| Hole Diameter (mm) | 27.00 |
| Number of Teeth | 4 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ 12 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 7200 |
| Number of Flutes | 8 |
| Maximum Cutting Width (mm) | 20.00 |
| Hub Diameter (mm) | 48.00 |
| Keyway Width (mm) | 12.40 |
| Through Coolant | Yes |
