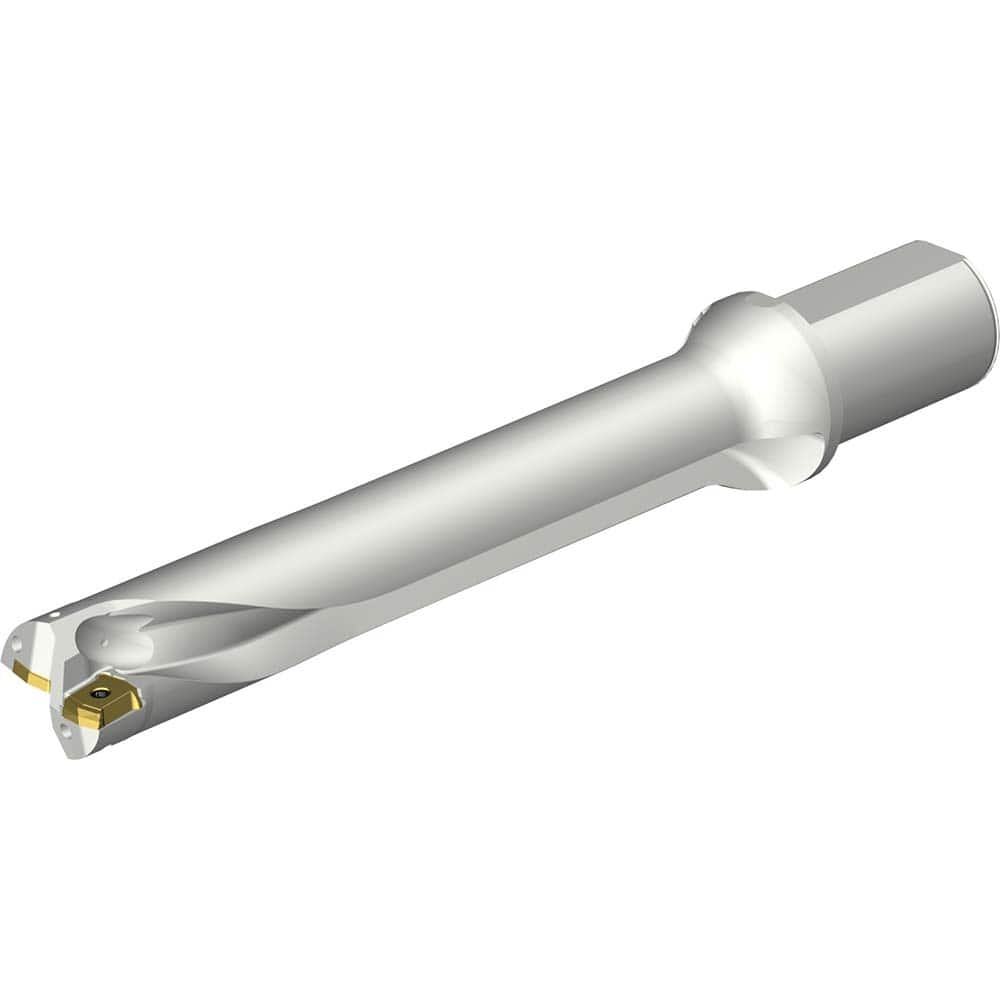

Sandvik Coromant - Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (mm): 44.00 ; Maximum Drill Depth (mm): 265.28 ; Shank Type: Straight ; Shank Diameter (mm): 50.0000 ; Cutting Direction: Right Hand
Item #: 48195606
Brand: Sandvik Coromant
Model #: 7548982
Product Specifications
Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (mm): 44.00 ; Maximum Drill Depth (mm): 265.28 ; Shank Type: Straight ; Shank Diameter (mm): 50.0000 ; Cutting Direction: Right Hand
| Drill Style | DS20 |
| Drill Diameter (mm) | 44.00 |
| Maximum Drill Depth (mm) | 265.28 |
| Shank Type | Straight |
| Shank Diameter (mm) | 50.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 6xD |
| Toolholder Material | Carbide |
| Overall Length/Projection (mm) | 386.00 |
| Insert Compatibility | DS20-0608 |
| Flute Length (mm) | 304.73 |
| Body Length (mm) | 269.000 |
| Series | CoroDrill DS20 |
