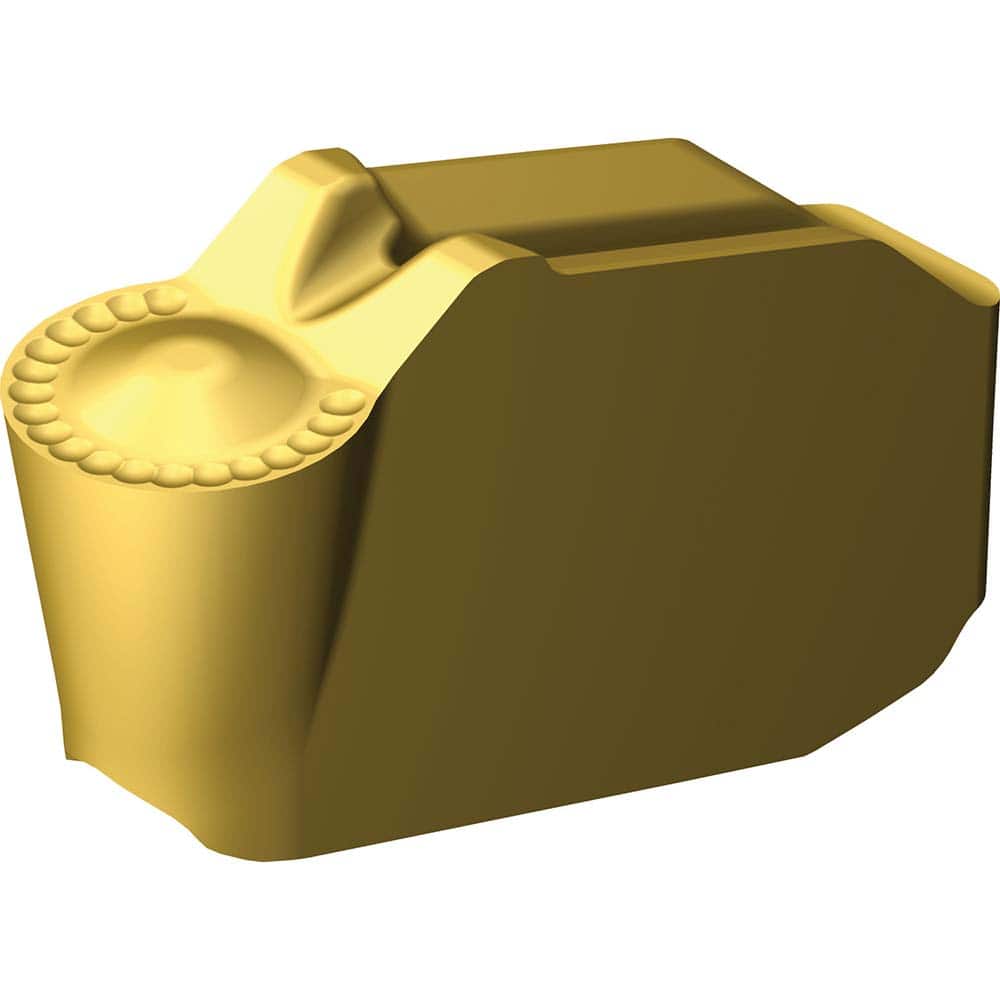

Sandvik Coromant - QD-NL-0800-RM 1135 Carbide Profiling Insert
Item #: 48195861
Brand: Sandvik Coromant
Model #: 7690545
Product Specifications
| Material | Carbide |
| Insert Style | QDNL |
| Insert Size | 0800 |
| Manufacturer's Grade | 1135 |
| Width (mm) | 8.00 |
| Thickness (mm) | 8.0000 |
| Corner Radius (mm) | 4.00 |
| Relief Angle | 7.000 |
| Coating | TiCrN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | RM |
| Included Angle | 20.00 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut QD |
| Maximum Depth of Cut (mm) | 3.5 |
| Insert Holding Method | Clamp |
| Shape | Irregular |
