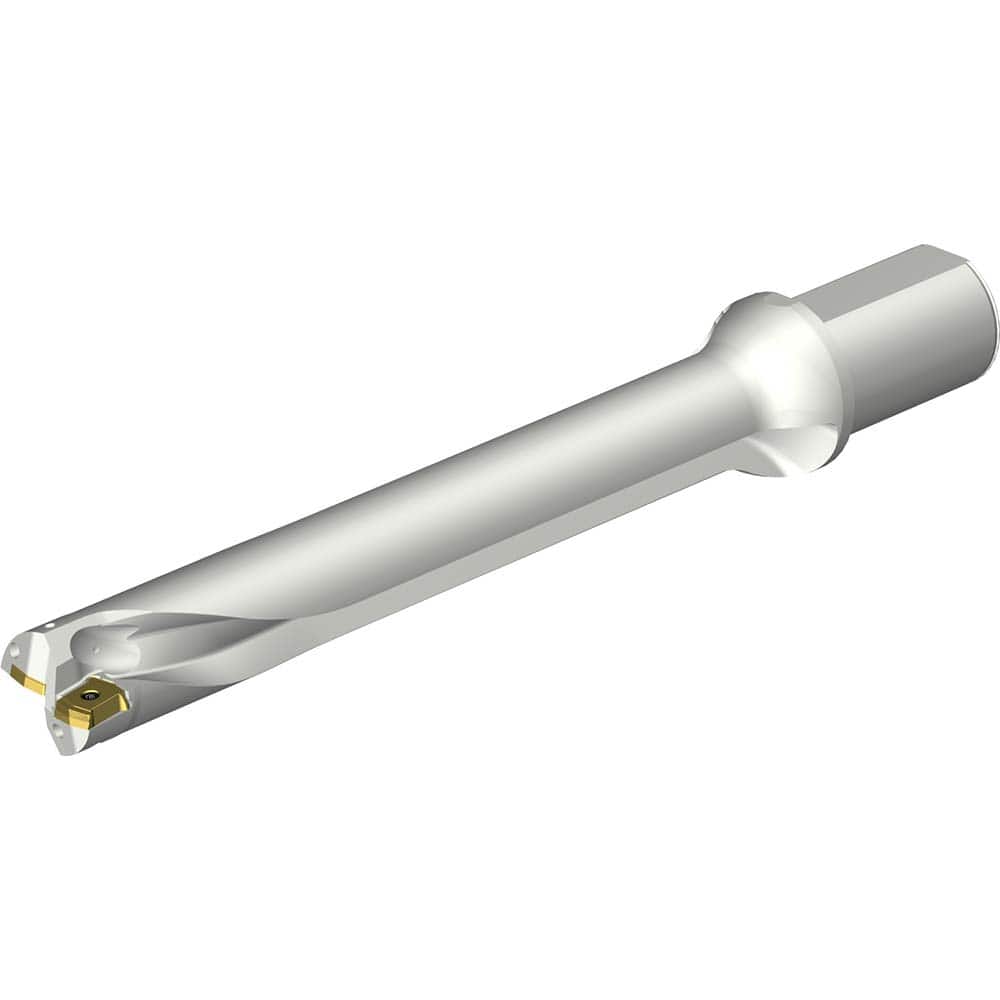

Sandvik Coromant - Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (mm): 42.00 ; Maximum Drill Depth (mm): 295.28 ; Shank Type: Straight ; Shank Diameter (mm): 50.0000 ; Cutting Direction: Right Hand
Item #: 48196505
Brand: Sandvik Coromant
Model #: 7548971
Product Specifications
Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (mm): 42.00 ; Maximum Drill Depth (mm): 295.28 ; Shank Type: Straight ; Shank Diameter (mm): 50.0000 ; Cutting Direction: Right Hand
| Drill Style | DS20 |
| Drill Diameter (mm) | 42.00 |
| Maximum Drill Depth (mm) | 295.28 |
| Shank Type | Straight |
| Shank Diameter (mm) | 50.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 7xD |
| Toolholder Material | Carbide |
| Overall Length/Projection (mm) | 416.00 |
| Insert Compatibility | DS20-0608 |
| Flute Length (mm) | 334.73 |
| Body Length (mm) | 299.000 |
| Series | CoroDrill DS20 |
