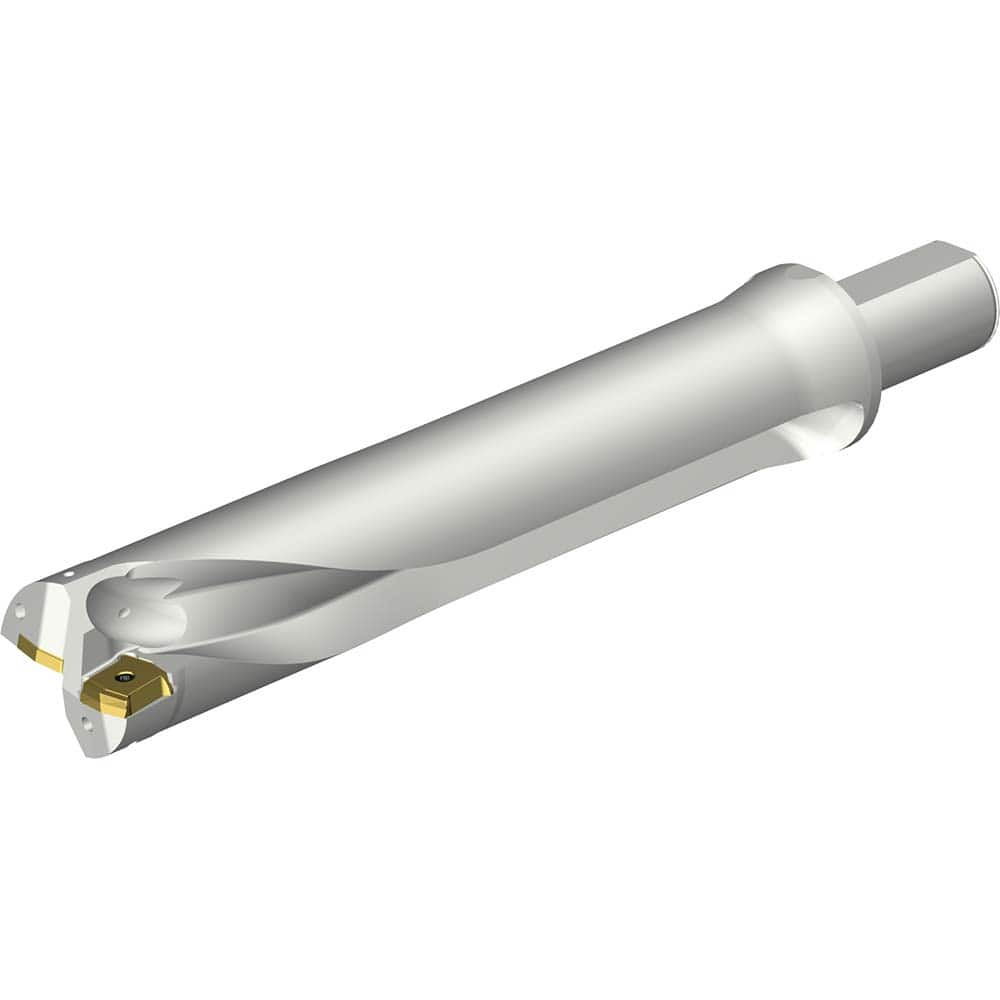

Sandvik Coromant - Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (Inch): 2.25 ; Maximum Drill Depth (Decimal Inch): 11.3126 ; Shank Type: Straight ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
Item #: 48196661
Brand: Sandvik Coromant
Model #: 7549023
Product Specifications
Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (Inch): 2.25 ; Maximum Drill Depth (Decimal Inch): 11.3126 ; Shank Type: Straight ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
| Drill Style | DS20 |
| Drill Diameter (Inch) | 2.25 |
| Maximum Drill Depth (Decimal Inch) | 11.3126 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1.5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Carbide |
| Overall Length/Projection (Decimal Inch) | 15.5679 |
| Insert Compatibility | DS20-0708 |
| Flute Length (Decimal Inch) | 12.7497 |
| Body Length (Decimal Inch) | 11.4280 |
| Series | CoroDrill DS20 |
