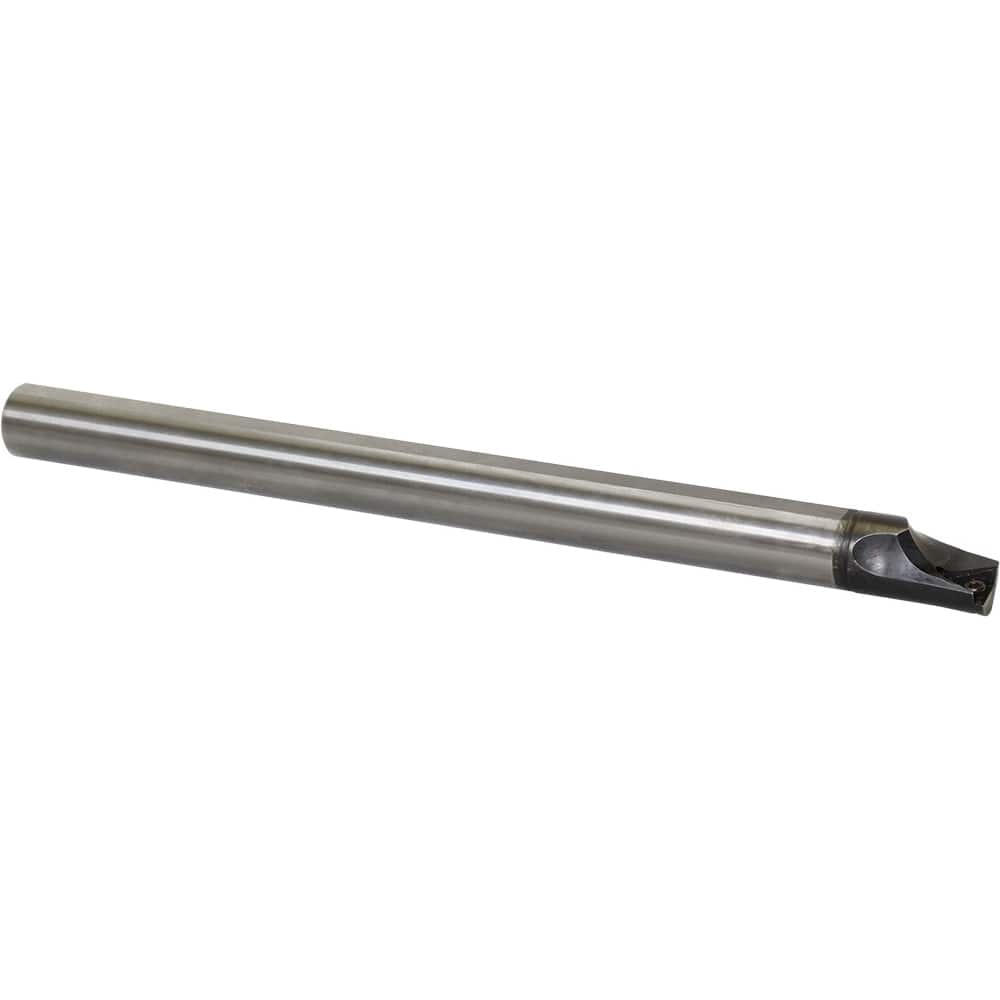

Kyocera - 12mm Min Bore, 18mm Max Depth, Left Hand E...STLP Indexable Boring Bar
Item #: 48197859
Brand: Kyocera
Model #: 8846029
Product Specifications
| Toolholder Style | E...STLP |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 12.000 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 18.00 |
| Overall Length (mm) | 160.0000 |
| Shank Diameter (mm) | 10.0000 |
| Insert Compatibility | TPGT1815?; TPMT1815?; TPMX1815?; TPEH1815?; TPGH1815?; TPGB1815?; TPMH1815? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 6.20 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 7/32 |
| Rake Angle | -8 (Radial);5 (Axial) |
| Coolant Hole Diameter (mm) | 3.00 |
| Toolholder Material | Steel; Carbide |
