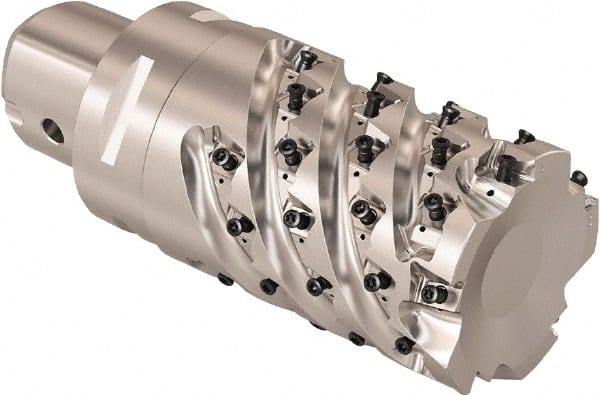

Seco - 44mm Cutting Diam, 8mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 4 Inserts, LOEX Insert, R217.94 Toolholder
Item #: 48329676
Brand: Seco
Model #: 00496
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 44.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Overall Length/Projection (Decimal Inch) | 4.4880 |
| Series | Square T4-08 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 4 |
| Cutter Style | R217.94 |
| Insert Compatibility | LOEX |
