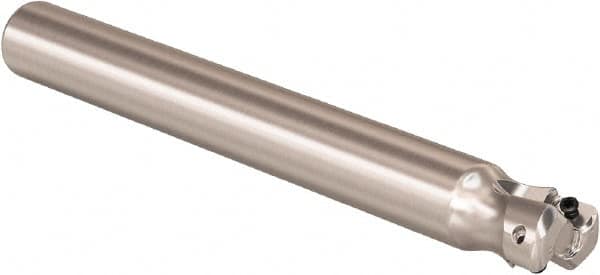

Seco - 20mm Cutting Diam, 18mm Shank Diam, 0.9mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, LOHT Insert, R217.21 Toolholder
Item #: 48329874
Brand: Seco
Model #: 14023
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.0350 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 18.00 |
| Number of Cutter Inserts | 2 |
| Insert Style | LOHT |
| Toolholder Style | R217.21 |
| Overall Length (Decimal Inch) | 6.2990 |
| Series | High Feed 4-06 |
