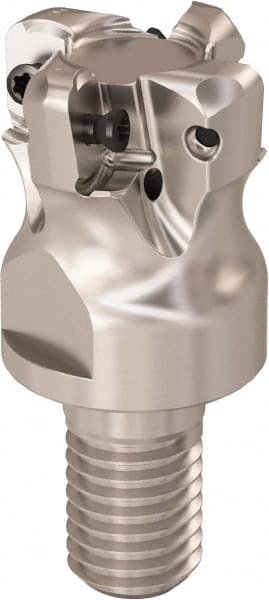

Seco - 25mm Cutting Diam, 0.9mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 4 Inserts, LOHT Insert, R217.21 Toolholder
Item #: 48329932
Brand: Seco
Model #: 82263
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.0350 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 4 |
| Insert Style | LOHT |
| Toolholder Style | R217.21 |
| Overall Length (Decimal Inch) | 1.1810 |
| Modular Connection Thread Size | M12 |
| Series | High Feed 4-06 |
