Walter-Titex - 9/16" 140° 2-Flute Solid Carbide Extra Length Drill Bit - Exact Tooling

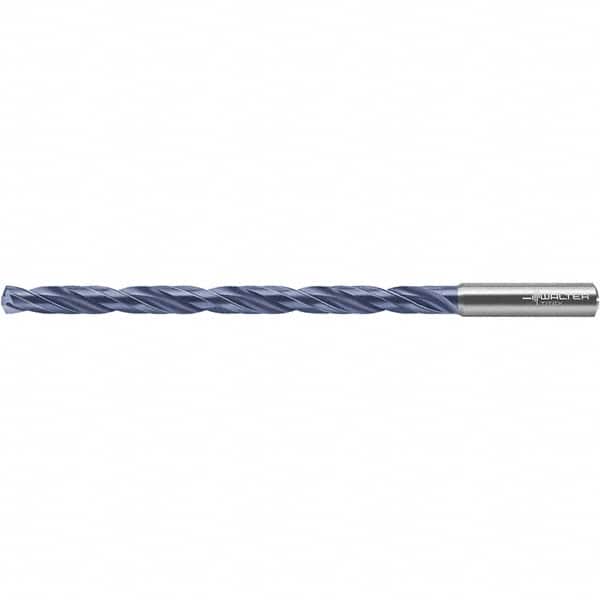

Walter-Titex - 9/16" 140° 2-Flute Solid Carbide Extra Length Drill Bit


Item #: 47280284
Brand: Walter-Titex
Model #: 6618857

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
TiNAl is extremely wear resistant coating when used at high temperatures and speeds in a wide range of high strength applications. It is commonly used on steel, cast iron and non-ferrous metal. Tinal is a proprietary coating exclusive to Walter Titex.
Product Specifications
Drill Bit Size (mm) 14.29
Drill Bit Size (Inch) 9/16
Drill Bit Size (Decimal Inch) 0.5625
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiNAl
Overall Length (Decimal Inch) 10.2360
Overall Length (mm) 260.00
Through Coolant Coolant Through
Shank Diameter (Decimal Inch) 0.6300
Shank Diameter (mm) 16.00
Flute Length (mm) 208.00
Flute Length (Decimal Inch) 8.1890
Cutting Direction Right Hand
Flute Length x Diameter Ratio 12xD
Number of Flutes 2
Maximum Drilling Depth (mm) 192.00
Maximum Drilling Depth (Decimal Inch) 7.5590
Drill Point Length (mm) 2.60
Drill Point Length (Decimal Inch) 0.1020
Series/List DC150-12-A1
$ 522.00
