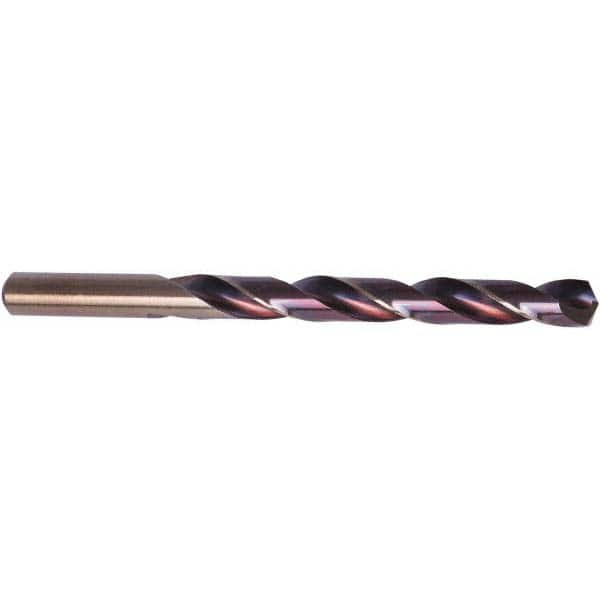

Precision Twist Drill - 31/64" 135° High Speed Steel Jobber Drill
Item #: 81982274
Brand: Precision Twist Drill
Model #: 022031
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Purple/Bronze coatings are used on a variety of materials. They prevent chip building and maintain lubricity for increased tool life.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 31/64 |
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Purple/Bronze |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Length (Inch) | 4-3/8 |
| Flute Length (Decimal Inch) | 4.3750 |
| Overall Length (Decimal Inch) | 5.8750 |
| Overall Length (Inch) | 5-7/8 |
| Flute Length x Diameter Ratio | 4xD |
| Point Type | Split Point |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Material Grade | M2 |
| Series/List | HX10 |
