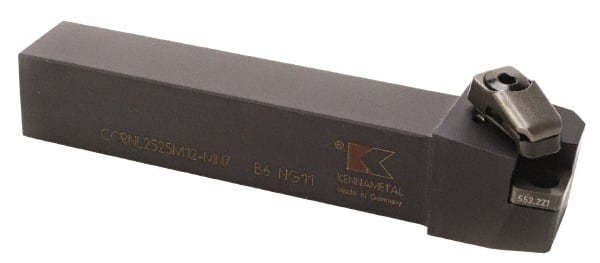

Kennametal - LH CCRN Negative Rake Indexable Turning Toolholder
Item #: 48418974
Brand: Kennametal
Model #: 1503827
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | CCRN |
| Rake | Negative |
| Series | Kendex |
| Lead Angle | 15 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | CN..1207.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 27.00 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
| Through Coolant | No |
| OverallLength (mm) | 150.00 |
