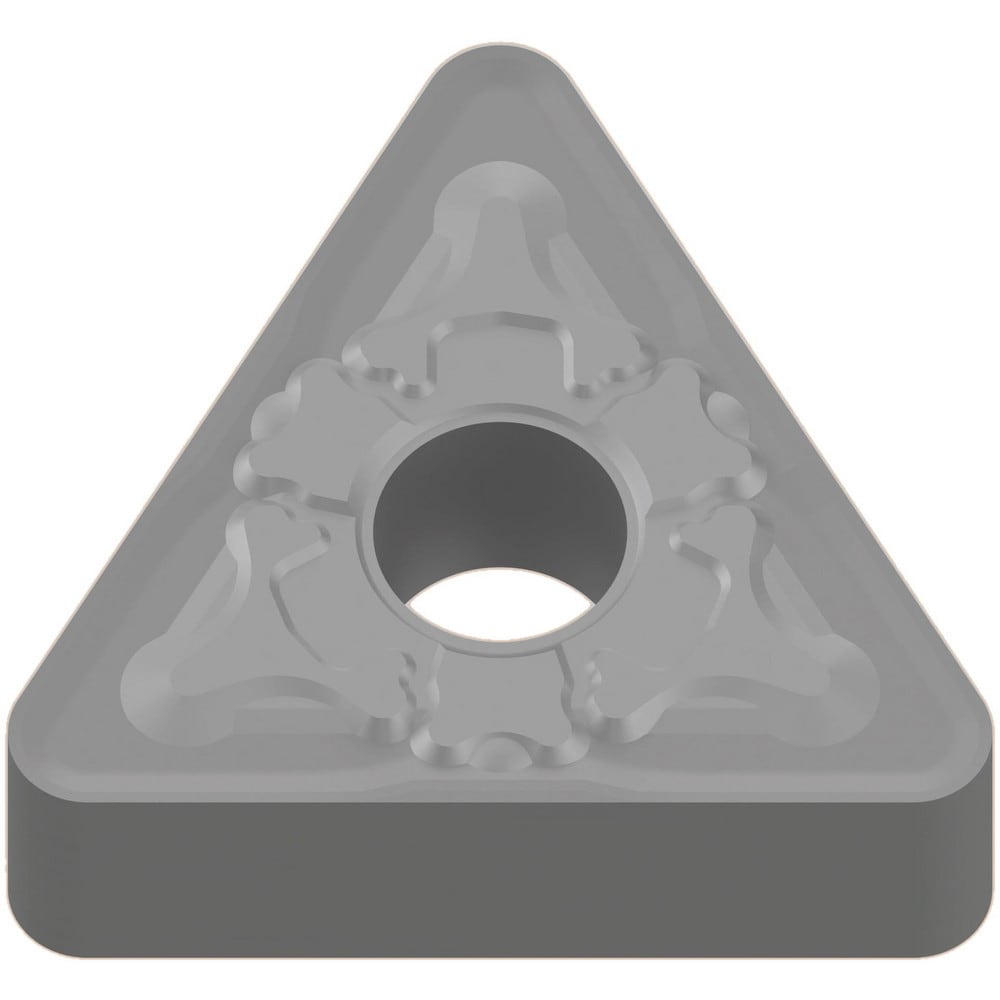

Turning Insert: TNMG432RS MT9015, Carbide

Turning Insert: TNMG432RS MT9015, Carbide


Item #: 05011655
Brand: Mitsubishi
Model #: 814830

Product Specifications

ANSI Insert Code TNMG432
ISO Insert Code TNMG220408
Relief Angle 0
Insert Style TNMG
Corner Radius (mm) 0.80
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0312
Included Angle 60
Manufacturer Grade MT9015
Coating/Finish Bright/Uncoated
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Material Carbide
Insert Shape T - Triangle
Chip Breaker Operation Medium Machining; Roughing
Grade Characteristics Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Number Of Cutting Edges 6
Insert Shape Code T
Clearance Code N
Tolerance Code M
Primary Workpiece Material Code S
Chip Breaker RS
ANSI Size Code 432
ISO Size Code 220408
UNSPSC Code 23242105
Insert Size Code 4
$ 13.58
