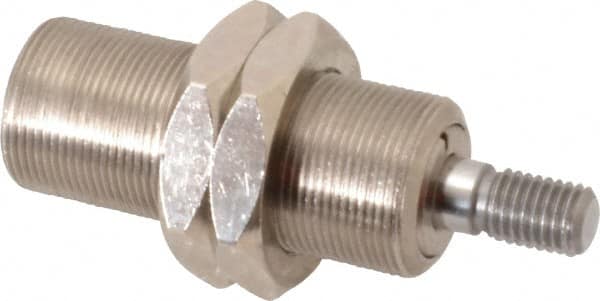

Mead - 1/2" Stroke x 1/2" Bore Single Acting Air Cylinder - 10-32 Port, 1/4-28 Rod Thread, 125 Max psi, -40 to 400°F
Item #: 48498752
Brand: Mead
Model #: MA500X0.50SRRO
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Bore Size (Inch) | 1/2 |
| Rod Diameter (Inch) | 1 |
| Rod Diameter (Decimal Inch) | 0.250 |
| Stroke Length (Inch) | 1/2 |
| Port Size | 10-32 |
| Port Type | UNF |
| Length (Decimal Inch) | 2.050 |
| Mount Thread | 5/8-32 |
| Maximum Working Pressure (psi) | 125 |
| Rod Thread Size | 1/4-28 |
| Style | Threaded Body |
