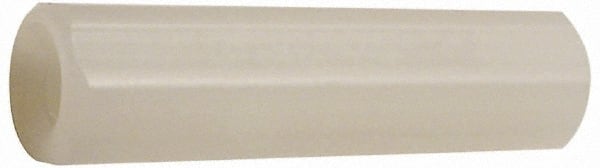

Electro Hardware - M3x0.50, 2mm OAL, 6mm Across Flats, Nylon Hex Fully Threaded Female Circuit Board Standoffs - 2mm Thread Depth, 16mm Body Length, Uncoated
Item #: 48563076
Brand: Electro Hardware
Model #: MP103M19F16M3
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with female threads are internally threaded to accept male fasteners or other standoffs. They are internally threaded on one end.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Thread Type | Female |
| Material | Nylon |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 2.00 |
| Thread Style | Fully Threaded |
| Thread Size | M3x0.50 |
| Width Across Flats (mm) | 6.00 |
| Finish/Coating | Uncoated |
| Body Length (mm) | 16.00 |
| Thread Depth (mm) | 2.00 |
| Tensile Strength (psi) | 16500.00 |
| Length Tolerance (mm) | -0.130 to 0.130 |
| Material Grade | Grade 101 |
| Fastener Standard | MIL-P-17091B |
