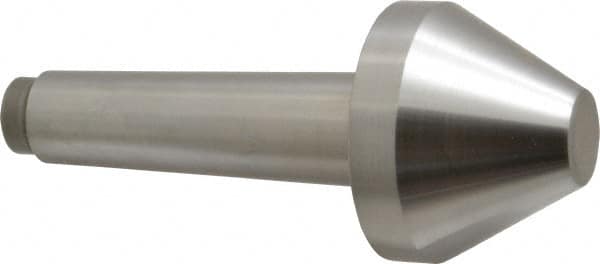

Riten - 2-3/4" Head Diam, Hardened Tool Steel Bull Nose Point Solid Dead Center - 4MT Morse Taper, 2-3/4" Point Diam, 1.508" Point Length, 2-15/16" OAL
Item #: 48571574
Brand: Riten
Model #: 66604
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Center Type | Solid Center |
| Shank Type | Morse Taper |
| Shank Taper Size | 4MT |
| Point Style | Bull Nose Point |
| Carbide-Tipped | No |
| Head Diameter (Inch) | 2-3/4 |
| Point Length (Decimal Inch) | 1.5080 |
| Point Diameter (Inch) | 2-3/4 |
| Tip Diameter (Inch) | 1/2 |
| Head Length (Inch) | 2-1/64 |
| Taper Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-15/16 |
| Point to Gauge Line (Inch) | 2-33/64 |
| Gage Line Clearance (Inch) | 1/2 |
| Thread Size | 1/2 |
