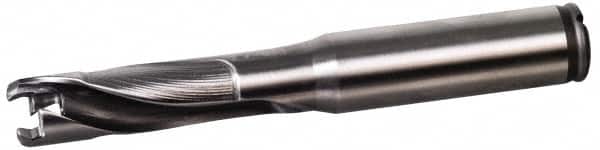

Kennametal - 15 to 15.99mm Diam, 8xD, 128mm Max Depth, 16mm Shank Diam, 147mm Flute, 200mm OAL, Replaceable Tip Drill - KTIP1500HPM Insert, T Seat Size, Series KenTIP
Item #: 48581193
Brand: Kennametal
Model #: 2548919
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 128.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | KTIP1500HPM |
| Insert Seat Size | T |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (mm) | 2.60 |
| Flute Length (mm) | 147.00 |
| Overall Length (mm) | 200.00 |
| Shank Length (mm) | 49.00 |
